8105

$2.98

Description：CMC 7MH 2.8A 2LN TH
Series：8100
Mfr：Bourns Inc.
Package：Tray

SKU:247d87b085ef Category: Common Mode Chokes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 7MH 2.8A 2LN TH
Series：8100
Mfr：Bourns Inc.
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：2.8A
DC Resistance (DCR) (Max)：120mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.200" L x 0.600" W (30.48mm x 15.24mm)
Height (Max)：1.200" (30.48mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：7 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

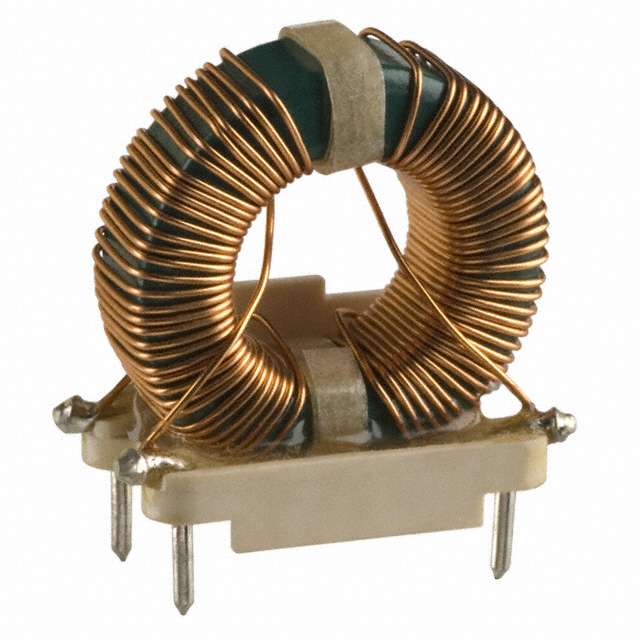

8105

Overview

The Bourns 8105 is a common mode inductor from the 8100 series, designed for electromagnetic interference (EMI) filtering in standard audio applications. It features a nominal inductance of 7 mH measured at 1 kHz. The component utilizes a vertical package with four printed circuit board pins. It operates within a temperature range of -55°C to an unspecified upper limit, ensuring stability in various environmental conditions.

Feature Summary

Provides effective electromagnetic interference filtering for audio circuits
Vertical pin configuration facilitates standard mounting processes
Constructed for reliable performance in compact electronic systems

Applications

Electromagnetic interference filtering in standard audio equipment
Signal conditioning in linear power supply circuits
Noise suppression in switch mode power supply designs

Procurement Notes

Verify the specific suffix designation, such as RC, against the required datasheet specifications. Confirm that the 7 mH inductance value aligns with the target application's frequency requirements. Ensure the vertical pin pitch matches the intended printed circuit board layout. Check for any automotive grade compliance if the deployment environment demands AEC-Q standards.

Selection Notes

Select this component when a 7 mH common mode inductance is required for audio band EMI suppression. Evaluate the physical dimensions and pin spacing to ensure compatibility with the assembly process. Consider the operating temperature range to guarantee functionality across the expected environmental spectrum. Verify that the current handling capabilities meet the circuit's operational demands without saturation.

Part Context

This component belongs to the Bourns 8100 series of common mode inductors, which may include optional header configurations. The series is engineered to support high reliability performance in smaller form factors. These inductors are part of Bourns' broader portfolio of magnetic components designed for diverse electronic applications.

Replacement Considerations

The 8105-RC is a documented variant within the same series. Verify electrical equivalence before substitution. No other public substitute part numbers are confirmed.
