Overview

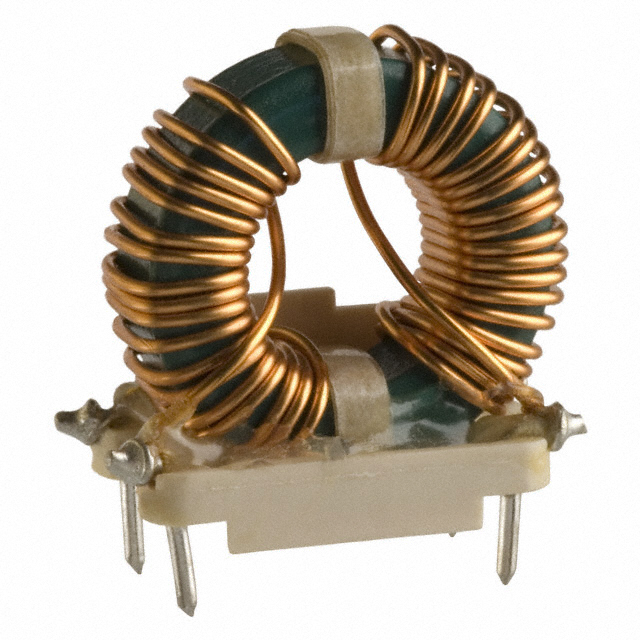

The Bourns Inc. 8107 is a through-hole common mode choke designed for two-line applications. It features an inductance of 2 mH measured at 1 kHz and supports a maximum current rating of 6.6 A. The component has a maximum DC resistance (DCR) of 22 mOhm. It utilizes a leaded construction suitable for standard PCB mounting.

Feature Summary

• Provides common mode noise suppression for dual-line circuits
• Supports high current handling up to 6.6 A
• Features low DC resistance for efficient power transmission

Applications

• Power supply input filtering
• EMI suppression in industrial equipment
• Noise reduction in data lines

Procurement Notes

Verify RoHS compliance status as the base part number may contain lead. Confirm exact specifications against the official product datasheet before procurement. Ensure the required header configuration matches the design requirements, as optional headers are available for this series.

Selection Notes

Select this component when a 2 mH inductance value is required for common mode noise attenuation. Ensure the circuit current does not exceed 6.6 A. Verify that the through-hole package fits the PCB layout constraints. Consider the 8107-RC variant if lead-free compliance is mandatory for the application.

Part Context

This component belongs to the Bourns 8100 Series of common mode inductors. These components are engineered for robust performance in filtering applications. The series offers various inductance values and current ratings to suit different power line requirements.

Replacement Considerations

The 8107-RC is a lead-free compliant version of the same component. Verify electrical parameters match exactly when substituting. Check mechanical dimensions and pin compatibility to ensure seamless integration into existing designs.
