810911010

Overview

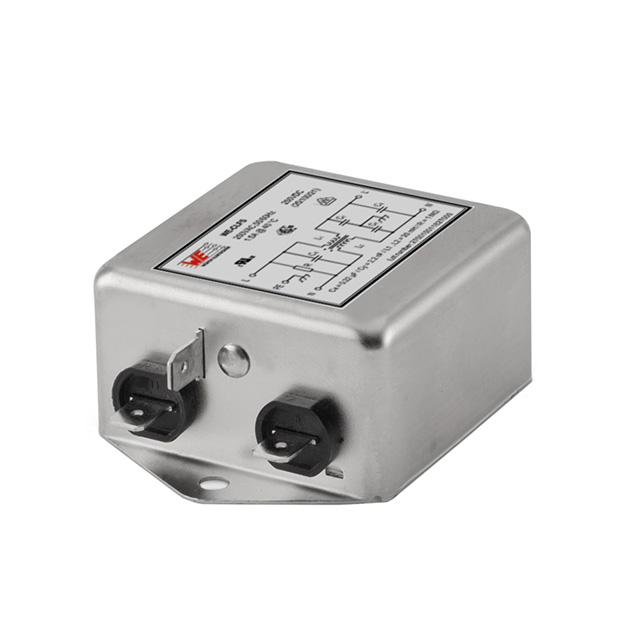

The Würth Elektronik WE-CLFS 810911010 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a voltage rating of 250 VAC and operates at frequencies of 50 Hz and 60 Hz. The component provides a current capacity of 10 A and utilizes quick-connect terminals for circuit integration.

Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount construction for stable installation
• Quick-connect terminal interface

Applications

• Industrial equipment power input stages
• Consumer appliance EMI filtering
• General purpose AC power line protection

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and leakage current specifications. Ensure the application environment does not exceed the rated 250 VAC or 10 A limits. Confirm that the quick-connect terminal dimensions match the mating connector requirements in the system design.

Selection Notes

Select this component when a robust, high-current single-phase filter is required for chassis-mounted applications. The 10 A rating distinguishes it from lower-capacity variants within the WE-CLFS series. Verify that the physical footprint accommodates the chassis mounting holes and that the terminal style aligns with the wiring harness.

Part Context

This part belongs to the WE-CLFS series of power line filters manufactured by Würth Elektronik. These components are engineered to reduce conducted emissions on AC power lines, ensuring compliance with electromagnetic compatibility standards for electronic devices operating in standard mains environments.

Replacement Considerations

Check for alternative single-phase filters with identical 10 A ratings and 250 VAC capabilities. Verify mechanical compatibility regarding chassis mounting dimensions and terminal spacing before substituting.
