810913006

Overview

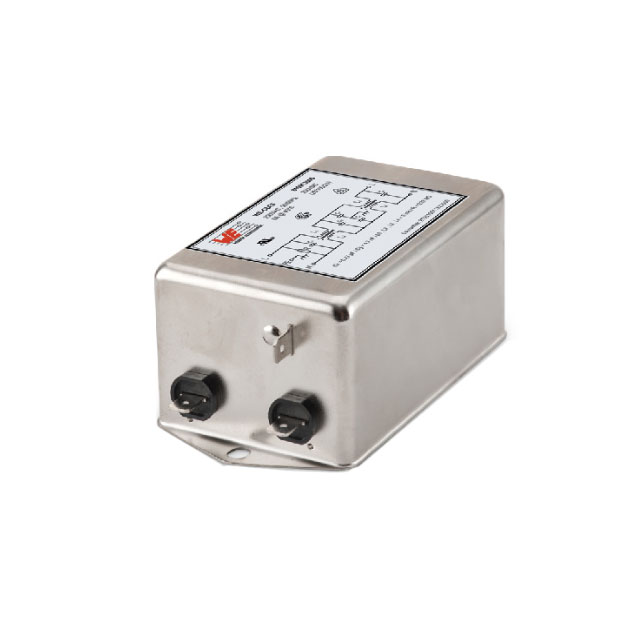

The Würth Elektronik WE-CLFS line filter, part number 810913006, is a single-phase, two-stage electromagnetic compatibility (EMC) filter designed for chassis mounting. It features Faston terminals and supports a voltage rating of 250 VAC and 250 VDC with a current rating of 6 A. The component exhibits a low DC resistance of 70 mOhm and operates at frequencies of 50 Hz and 60 Hz. Certified by UL, CSA, and IEC/EN standards, it provides broadband noise suppression in both common-mode and differential-mode configurations.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference reduction
• Broadband noise suppression capability across common-mode and differential-mode signals
• Chassis mount design utilizing Faston terminal connections

Applications

• Industrial equipment power supply input stages
• Medical device power filtering
• Information technology hardware EMC compliance

Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and terminal spacing before integration. Ensure that the selected mounting hardware accommodates the chassis mount style. Confirm regulatory certification requirements such as UL or CSA align with the target market regulations. Cross-reference the Faston terminal specifications with mating connector types to ensure reliable electrical contact.

Selection Notes

Select this component when a single-phase, two-stage solution is required for 6 A applications. The 70 mOhm resistance minimizes power loss compared to higher-resistance alternatives. Verify that the chassis mounting style fits the enclosure constraints. Consider the Faston termination type if screw terminals are not preferred for the assembly process.

Part Context

This component belongs to the WE-CLFS series from Würth Elektronik, which specializes in single-phase power line filters. The series offers various current ratings and resistance values to suit different power levels. The two-stage design distinguishes it from single-stage counterparts by providing superior attenuation characteristics for sensitive electronic environments.

Replacement Considerations

Direct substitutes within the same series include part numbers 810913001 through 810913014, which share the WE-CLFS form factor but differ in current ratings and DC resistance values. Verify that any replacement maintains the 6 A rating and 70 mOhm resistance to ensure equivalent performance.
