8116

$5.87

Description：CMC 50MH 2.3A 2LN TH
Series：8100
Mfr：Bourns Inc.
Package：Tray

SKU:8f6242793017 Category: Common Mode Chokes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 50MH 2.3A 2LN TH
Series：8100
Mfr：Bourns Inc.
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：2.3A
DC Resistance (DCR) (Max)：450mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.550" L x 0.800" W (39.37mm x 20.32mm)
Height (Max)：1.650" (41.91mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：50 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

8116

Overview

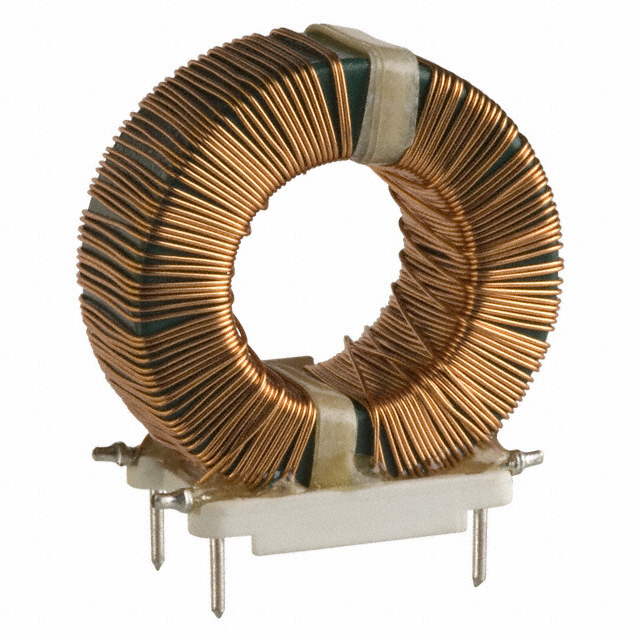

The Bourns Inc. 8116 is a vertical mount common mode choke designed for through-hole installation. It features two lines and provides an inductance of 50 mH at a test frequency of 1 kHz. The component supports a maximum DC current of 2.3 A with a maximum DC resistance of 450 mOhms. It operates within a temperature range of -55°C to +105°C. Physical dimensions are 1.55 inches in length, 0.8 inches in width, and 1.65 inches in height. The unit weighs approximately 42 grams and has a lead spacing of 0.9 inches.

Feature Summary

Provides common mode noise suppression for power line applications
Constructed with unshielded design for vertical mounting
Supports high current handling capabilities

Applications

Power supply input filtering
Electromagnetic interference suppression in electronic equipment
Signal integrity protection in AC/DC conversion circuits

Procurement Notes

Verify the specific suffix (e.g., RC) as it may indicate compliance status or packaging variations. Confirm RoHS compliance requirements against project specifications. Check manufacturer documentation for exact lead finish and pin configuration details before integration. Ensure thermal management aligns with the specified operating temperature range during operation.

Selection Notes

Select this component when high inductance values are required for low-frequency noise attenuation. Evaluate the physical footprint constraints against the specified dimensions. Consider the current rating relative to the circuit's maximum load to prevent saturation. Verify that the through-hole mounting style matches the PCB design capabilities.

Part Context

This component belongs to the Bourns 8100 series of common mode chokes. These components are engineered for robust performance in industrial and commercial applications. The series offers various inductance options to suit different filtering needs while maintaining consistent physical form factors for easy board layout planning.
