Product Detailed Parameters
- Description：RF ANT 1.5845GHZ DOME TNC F BRKT
- Series：8178D
- Mfr：Amphenol PCTEL
- Package：Box
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.5845GHz
- Frequency Range：1.559GHz ~ 1.61GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBic
- Features：LNA
- Termination：TNC Female
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount, Through Hole
- Height (Max)：1.732" (44.00mm)
- Applications：Beidou, Galileo, GLONASS, GNSS, GPS
- Power - Max：-
Download product information
Overview

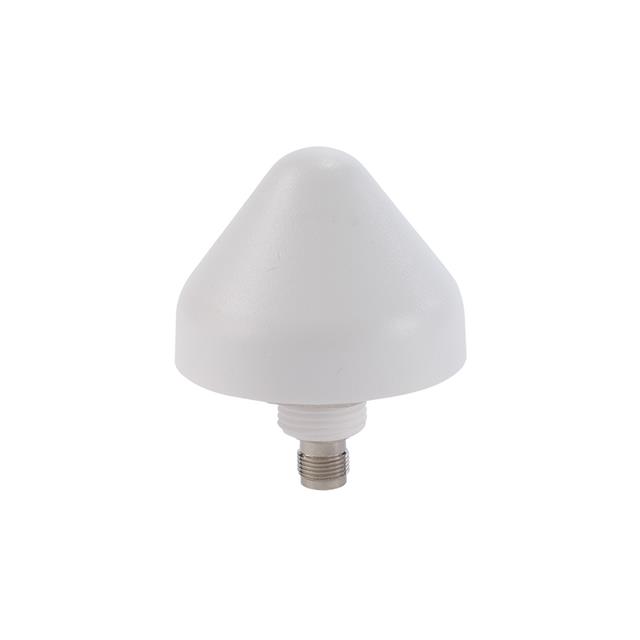

The Amphenol PCTEL 8178D-HR-DH-W is a GNSS dome antenna designed for global time synchronization. It supports GPS L1, GLONASS L1, Galileo E1, and Beidou B1 frequencies. The unit features an integrated Low Noise Amplifier (LNA) with industry-leading out-of-band rejection of 40 dB and a low noise figure under 2.0 dB. Operating voltage ranges from 2.8 V to 6.0 V DC. It utilizes a TNC female connector and employs a conical permanent mount configuration.
Feature Summary
- Supports multiple global satellite navigation systems including GPS, GLONASS, Galileo, and Beidou.
- Integrates proprietary filtering design for wideband coverage and superior out-of-band signal rejection.
- Features a high-gain Low Noise Amplifier (LNA) to ensure optimal signal integrity.
- Constructed with a conical permanent mount structure suitable for fixed installations.
Applications
- Global GNSS time synchronization applications
- Intelligent Transportation Systems (ITS)
- Surveying and mapping equipment
- Precision agriculture positioning
Procurement Notes
Verify the specific frequency band requirements against the target satellite constellations before procurement. Confirm that the power supply provides stable DC voltage within the 2.8 V to 6.0 V operating range. Ensure the installation environment accommodates the conical permanent mount geometry. Check connector compatibility for the TNC female interface on the receiving equipment.
Selection Notes
Select this model when comprehensive multi-constellation support is required for critical timing or positioning tasks. The integrated LNA makes it suitable for long cable runs where signal loss is a concern. Consider the IP rating and environmental sealing if deployed in harsh outdoor conditions. Compare gain specifications against other dome antennas if higher directivity is needed.
Part Context
This component belongs to the Amphenol PCTEL GNSS antenna portfolio, specifically engineered for robust performance in global navigation satellite systems. It is part of their industrial IoT and transportation connectivity solutions, focusing on reliable data acquisition for time-sensitive applications across various sectors.
Replacement Considerations
Consult official Amphenol PCTEL documentation for cross-reference part numbers. Verify mechanical mounting dimensions and electrical interface compatibility before substituting. Ensure any alternative model maintains equivalent LNA performance and multi-constellation support capabilities.
