Product Detailed Parameters
- Description：High-Speed Edge Card 0.80mm Pitc
- Series：8208
- Mfr：Oupiin
- Package：Tape & Reel (TR)
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：20
- Number of Positions：40
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.031" (0.80mm)
- Read Out：Dual
- Features：Board Guide
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 125°C
Download product information
Overview

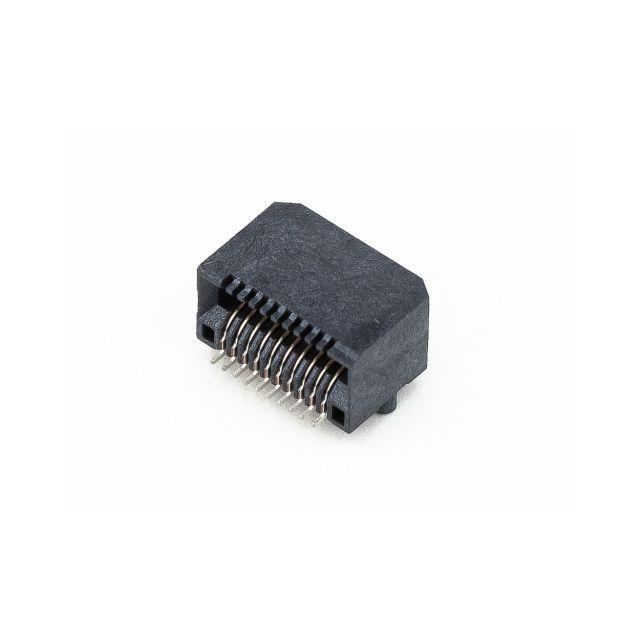

The Oupiin 8208-2x20C30DR2PNT is a card edge connector featuring 40 contacts arranged in two rows. It utilizes a female contact configuration with a right-angle orientation for surface mount terminal attachment. The component maintains a precise pitch of 0.031 inches (0.80mm) between contacts. Gold plating is applied to the dual-edge interface to ensure reliable signal transmission. The housing is constructed from black material, providing structural integrity and visual identification within assembly environments.
Feature Summary
- Right-angle surface mount design facilitates compact board integration
- Dual-edge gold plating ensures stable electrical connectivity
- Female contact configuration supports secure mating engagement
Applications
- High-speed data transmission modules
- Telecommunications equipment interfaces
- Industrial control system backplanes
Procurement Notes
Verify that the specific suffix 'DR2PNT' matches the required right-angle and locking specifications. Confirm the dual-edge gold plating requirement aligns with the application's conductivity needs. Ensure the 0.80mm pitch is compatible with the target PCB layout. Cross-reference the 40-contact count against the circuit design requirements before finalizing orders.
Selection Notes
Select this model when a right-angle, dual-row card edge connector is required. The 0.80mm pitch suits high-density applications. The gold-plated dual-edge interface is suitable for frequent mating cycles. Consider the surface mount termination method for automated assembly processes. Verify compatibility with standard card edge thicknesses.
Part Context
This component belongs to the Oupiin 8208 series of edgeboard connectors. The series offers various contact counts and configurations. The 8208 series is designed for high-reliability interconnect solutions. It supports both straight and right-angle orientations. The product line emphasizes stable performance in demanding electronic environments.
Replacement Considerations
Direct substitutes include the 8208-2X20C30DR2PN1T variant. Verify pinout and mechanical dimensions match exactly. Check if alternative suppliers offer equivalent gold-plated dual-edge specifications.
