826951-3

Headers, Male Pins Overview

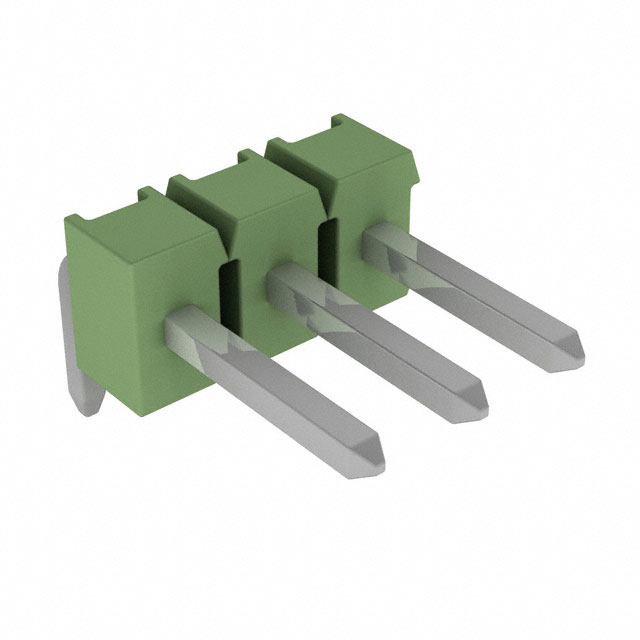

The TE Connectivity AMP Connectors 826951-3 is a header component from the AMPMODU MOD II series. It features a single row with three positions and a 0.100-inch (2.54mm) pitch. The connector utilizes male pin contacts made of brass alloy, finished with tin plating. Designed for through-hole mounting at a right angle, it employs solder termination. The housing is constructed from thermoplastic material rated UL 94 V-0 for flammability.

Headers, Male Pins Feature Summary

• Single-row configuration with three contact positions.
• Right-angle through-hole installation for board-to-board connectivity.
• Male pin contacts with tin-plated brass alloy construction.
• Thermoplastic housing ensuring UL 94 V-0 flammability rating.

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board assemblies
• General electronic circuit integration

Headers, Male Pins Procurement Notes

Verify the specific part number suffix to confirm the exact pin count and orientation, as AMPMODU series identifiers often vary by position. Ensure compatibility with mating receptacles regarding pitch and locking mechanisms. Confirm that the right-angle form factor aligns with the mechanical constraints of the target printed circuit board layout before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for three signal lines. The 2.54mm pitch ensures broad compatibility with standard PCB footprints. Consider the tin plating for general-purpose applications where gold is not strictly necessary. Evaluate the thermal requirements against the 105°C maximum operating temperature limit during design integration.

Headers, Male Pins Part Context

This component belongs to the AMPMODU MOD II family, a widely utilized line of rectangular connectors known for reliability in various industrial and commercial environments. The series offers modular flexibility, allowing engineers to mix and match housings and contacts. The 826951-3 specifically addresses needs for compact, right-angle routing in dense circuit designs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 3-position, 2.54mm pitch headers from the same manufacturer or third-party vendors offering identical mechanical dimensions and electrical ratings. Verify that any alternative maintains the right-angle orientation and through-hole solder termination style to ensure direct fitment without redesigning the PCB footprint.
