833-008-520-604

Edgeboard Connectors Overview

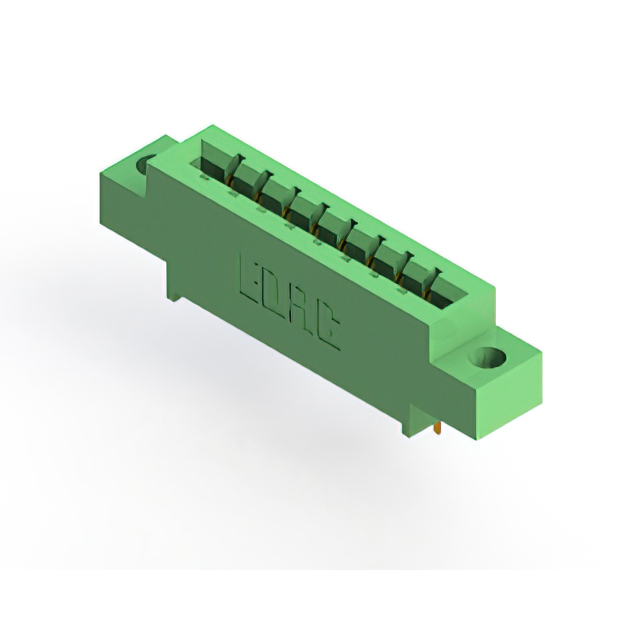

The EDAC Inc. 833-008-520-604 is a standard card edge connector from the 833 series, designed for single-edge board applications. It features 8 positions with a 0.156-inch (3.96 mm) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and has a current rating of 3 A. Constructed with a diallyl phthalate (DAP) housing, it offers vertical panel mounting capabilities. This component serves as a female interconnect solution for electronic assemblies requiring durable and precise edge-board connections.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance.
• Diallyl phthalate (DAP) housing material ensures durability and thermal stability.
• Vertical panel mount style facilitates secure integration into chassis or enclosure systems.

Edgeboard Connectors Applications

• General electronic equipment interconnects
• Industrial control system modules
• Telecommunications hardware assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating, housing color, and termination type match project requirements. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Ensure that the selected variant aligns with the intended PCB thickness and mounting orientation specifications for the target application environment.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 8-position interface is required for vertical panel mounting. The 3.96 mm pitch accommodates standard card edge designs, while the 3 A current rating suits moderate power applications. Verify compatibility with the mating card's edge thickness and ensure the DAP housing meets environmental constraints for the deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors, which are engineered for robust connectivity in various industrial and commercial sectors. The series provides multiple position counts and mounting options, allowing designers to scale interconnect solutions while maintaining consistent mechanical and electrical characteristics across different assembly configurations.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC series only if mechanical dimensions and electrical ratings are strictly matched.

Edgeboard Connectors FAQ

What is the contact plating material for this connector?

The contacts are made of copper alloy and are gold-plated to enhance conductivity and corrosion resistance.

Does this connector support right-angle mounting?

No, the 833-008-520-604 is specified for vertical panel mounting; right-angle variants exist within the same series but have different model numbers.
