Edgeboard Connectors Overview

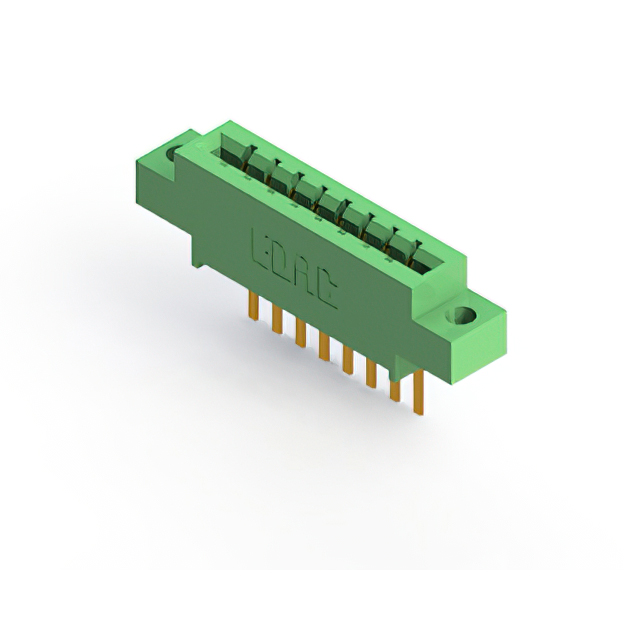

The EDAC Inc. 833-008-544-604 is a standard card edge connector from the 833 series, designed for panel mounting with a vertical orientation. It features an 8-position configuration with a 3.96 mm pitch and supports a maximum board thickness of 1.57 mm. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission, rated at 3 A current capacity. This single-row component utilizes wire wrap termination for secure circuit board attachment.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical conductivity
• Diallyl phthalate (DAP) housing material ensures durability in demanding environments
• Vertical panel mount design facilitates structured integration into equipment chassis

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high reliability
• Agricultural technology systems operating in harsh conditions
• Industrial control panels utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your system requirements. Ensure that the selected variant matches the required pitch, position count, and termination style. Cross-reference technical specifications such as current rating and temperature range with your design constraints before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector with wire wrap termination is required. Consider the 3.96 mm pitch and 1.57 mm board thickness limits during mechanical design. Verify that the 3 A current rating and DAP housing material meet the environmental and electrical demands of the target application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series, which specializes in standard card edge connectors. The series offers various configurations tailored for robust industrial and specialized applications. The 833-008-544-604 specifically provides an eight-position interface suitable for single-row board connections within larger electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides or distributor cross-reference lists for verified alternative part numbers. Ensure any replacement maintains identical pitch, position count, and termination methods to guarantee mechanical and electrical compatibility without redesigning the host assembly.
