833-010-521-107

Edgeboard Connectors Overview

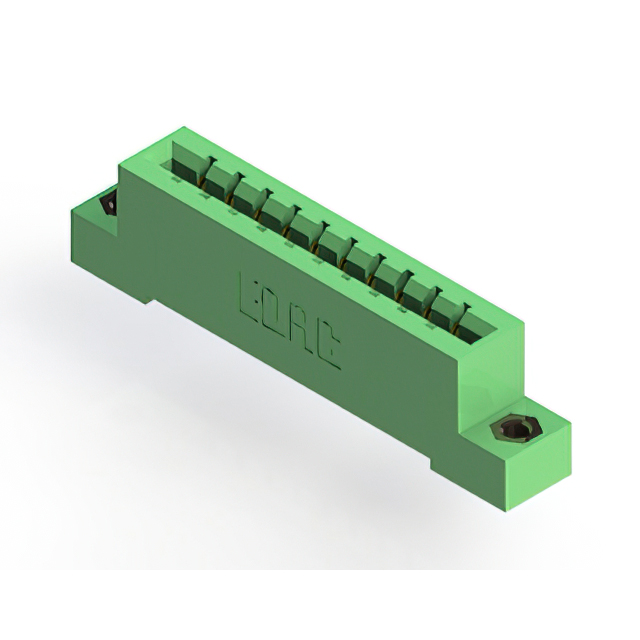

The EDAC 833-010-521-107 is a single-row, female card edge connector from the 833 Series. It features 10 positions with a 3.96 mm (0.156 inch) pitch. Designed for panel mount installation at a vertical angle, it utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. The unit supports a 3 A current rating and operates within a temperature range of -40°C to +125°C. It accommodates a board thickness of 1.57 mm and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission
• Diallyl phthalate housing offers durable insulation

Edgeboard Connectors Applications

• Medical interconnect systems
• Agricultural technology equipment
• Industrial control panels

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified suppliers. Confirm that the received part matches the specific 833 Series designation and green housing color. Ensure compliance with RoHS requirements as indicated in official documentation. Check for any regional distribution restrictions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a vertical, single-row connection is required for 1.57 mm thick circuit boards. The 3.96 mm pitch and 10-position count define the interface density. Consider the high-temperature rating if the application exceeds standard operating limits. Verify that the panel mount style aligns with the mechanical assembly design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 Series, which specializes in high-temperature card edge connectors. The series is engineered for robust performance in challenging conditions. The 833-010-521-107 variant specifically addresses applications requiring vertical orientation and gold contact reliability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 833 Series parts sharing the same 3.96 mm pitch and 1.57 mm board thickness. Verify compatibility with existing panel cutouts and mating card dimensions before substitution.
