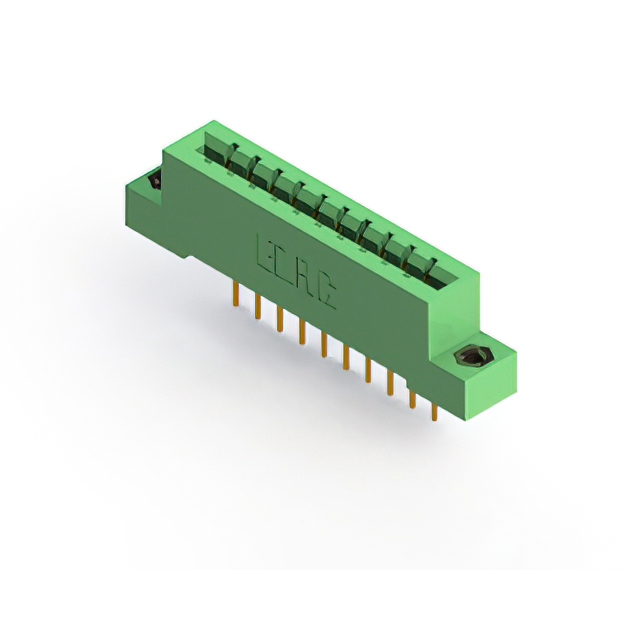

833-010-541-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 10POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 833-010-541-108
- Description：CONN EDGE SGL FMALE 10POS 0.156
- Series：833
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：10
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 833-010-541-108
Edgeboard Connectors Overview
The EDAC Inc. 833-010-541-108 is a standard card edge connector from the 833 series, designed for single-edge board applications. It features 10 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accommodates board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). It utilizes gold-plated contacts and is available in green insulator material.
Edgeboard Connectors Feature Summary
- Single-edge female connector configuration
- Gold-plated contact surfaces for reliable signal transmission
- Compatible with standard PCB thickness ranges
Edgeboard Connectors Applications
- Electronic module interconnection
- Panel-mounted circuit assembly
- Industrial control system interfaces
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version for the 833-010-541-108 to confirm current manufacturing status and environmental compliance details such as RoHS. Ensure that the target printed circuit board thickness falls within the specified 1.37 mm to 1.78 mm range to guarantee proper mechanical engagement and electrical continuity during installation.
Edgeboard Connectors Selection Notes
Select this component when a single-row, 10-position connection is required for non-specified single-edge boards. The 3.96 mm pitch suits applications needing robust mechanical stability. Confirm that the operating environment does not exceed the thermal limits defined in the official EDAC documentation for the 833 series before finalizing the design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting styles. The 833-010-541-108 specifically addresses low-count, single-edge interface needs with a focus on durability and consistent electrical performance in general industrial and commercial electronic assemblies.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 833 series variants for different position counts or mounting angles. Verify compatibility with existing tooling and PCB layouts when substituting similar connectors from the same manufacturer family.
