833-013-544-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 13POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 833-013-544-101
- Description：CONN EDGE SGL FMALE 13POS 0.156
- Series：833
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：13
- Number of Positions：13
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 833-013-544-101
Edgeboard Connectors Overview

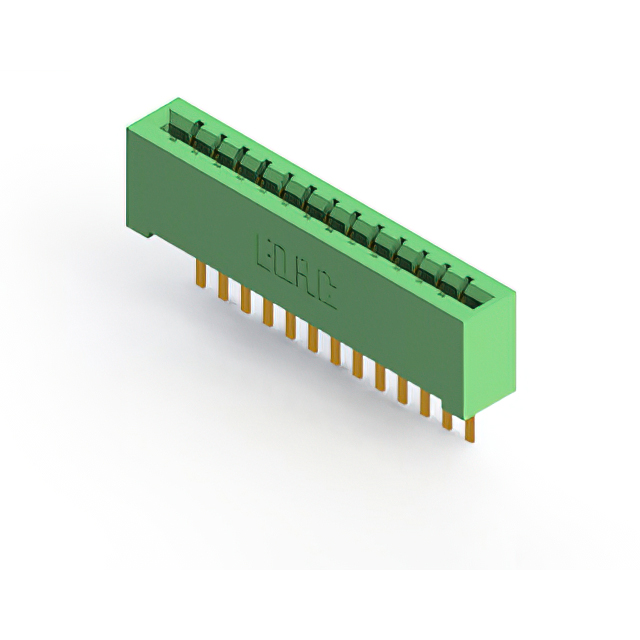

The EDAC 833-013-544-101 is a standard card edge connector featuring 13 positions with a 3.96 mm pitch. Designed for single-edge board insertion, it utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. The component supports wire wrap termination and operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Gold-plated contacts ensure reliable signal transmission
- Diallyl phthalate housing provides structural stability
- Wire wrap termination facilitates secure circuit integration
Edgeboard Connectors Applications
- Medical interconnect solutions
- Agricultural technology systems
- Industrial control equipment
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version for the 833-013-544-101 model to confirm current RoHS compliance status and detailed dimensional tolerances. Ensure that the wire wrap termination method aligns with the target assembly process requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a 13-position interface with a 3.96 mm pitch is required. The vertical panel mount style and single-edge design are suitable for applications needing robust mechanical retention. Verify that the operating temperature range meets the environmental conditions of the intended deployment site.
Edgeboard Connectors Part Context
This part belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting angles, providing modular connectivity options for diverse electronic assemblies. The consistent 3.96 mm pitch across the series allows for standardized PCB layout planning.
Edgeboard Connectors Replacement Considerations
Cross-reference other parts in the 833 series, such as 833-010 or 833-016 variants, if different position counts are acceptable. Verify that alternative models maintain the same 3.96 mm pitch and DAP housing material to ensure mechanical compatibility.
