833-016-520-204

Edgeboard Connectors Overview

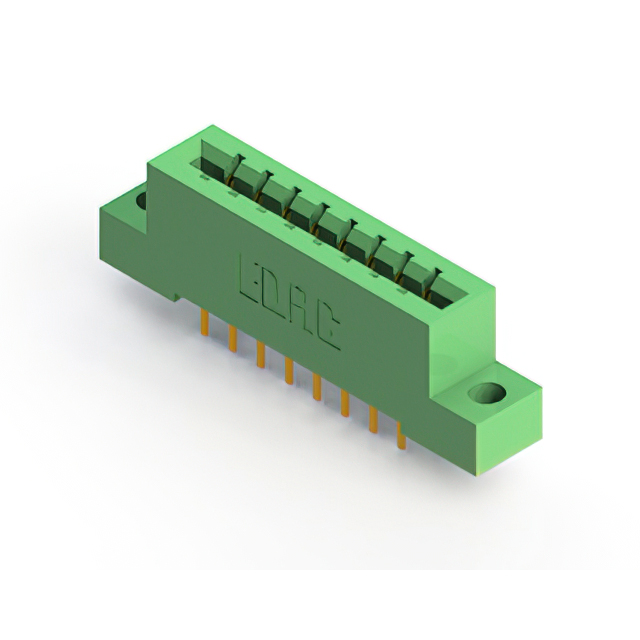

The EDAC Inc. 833-016-520-204 is a standard card edge connector featuring 16 positions with a 3.96 mm pitch. Designed for dual-edge card insertion, it accommodates a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts rated for 3 A current and employs a solder pin termination type. Constructed with a diallyl phthalate (DAP) housing, this component supports vertical panel mounting configurations.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure card insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Solder pin termination facilitates robust PCB attachment
• Diallyl phthalate housing provides structural insulation

Edgeboard Connectors Applications

• Panel-mounted electronic interconnect systems
• Industrial control module connections
• Communication equipment interface boards
• Medical device internal circuitry linking

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct orientation and plating specifications. Confirm that the target application requires a 3.96 mm pitch and 1.57 mm board thickness compatibility. Check regional availability as distribution status may vary by location. Ensure compliance with required environmental standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a vertical panel mount solution is required for dual-edge cards. The 16-position count suits moderate density applications. Verify that the 3 A current rating meets system electrical requirements. Consider the DAP material properties for thermal and chemical resistance needs in the operating environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting angles. The specific suffix indicates dual-edge configuration and gold plating. It serves as a reliable interface between flexible or rigid printed circuits and panel-mounted hardware.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 833 series variants for different position counts. Verify mechanical fit with existing panel cutouts. Ensure electrical parameters match system requirements before substituting.
