833-017-523-602

Edgeboard Connectors Overview

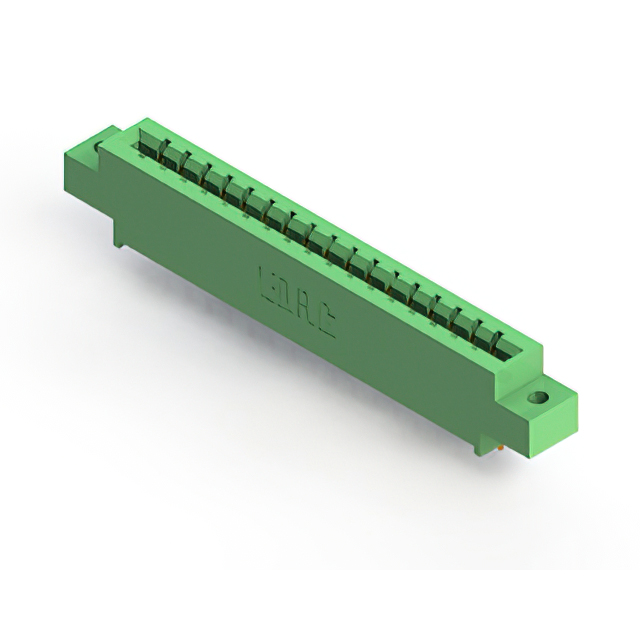

The EDAC 833-017-523-602 is a standard single-row card edge connector featuring 17 positions with a 3.96 mm (0.156 inch) contact spacing. Designed for vertical panel mounting, it utilizes gold-plated copper alloy contacts and a solder pin termination method. The unit accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with a Diallyl Phthalate (DAP) insulator body, this component provides reliable electrical interconnection in high-profile configurations.

Edgeboard Connectors Feature Summary

• Accepts standard 0.062 inch thick PCBs
• Gold-plated contacts for corrosion resistance
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Medical interconnect systems
• Agricultural technology equipment
• Industrial control panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure correct contact plating and termination type compatibility. Confirm that the target PCB thickness matches the 0.062 inch specification before integration. Check regional availability as distribution may be limited in certain areas. Ensure compliance with RoHS requirements if mandated by the end application standards.

Edgeboard Connectors Selection Notes

Select this model when a single-row interface with 3.96 mm pitch is required for panel-mounted applications. It is suitable for designs needing a high-profile insulator body to accommodate thicker board stacks. Consider the 17-position count against signal requirements. Verify that the vertical orientation fits within the enclosure constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm spacing and 1.57 mm board thickness compatibility. The 833 series is engineered for durability in demanding environments, including medical and agricultural sectors requiring robust interconnect solutions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 833-016-521-112 or 833-031-520-112, which share identical mechanical and electrical specifications but differ in position count. Ensure the replacement maintains the single-row configuration and vertical mounting angle.
