833-018-523-808

Edgeboard Connectors Overview

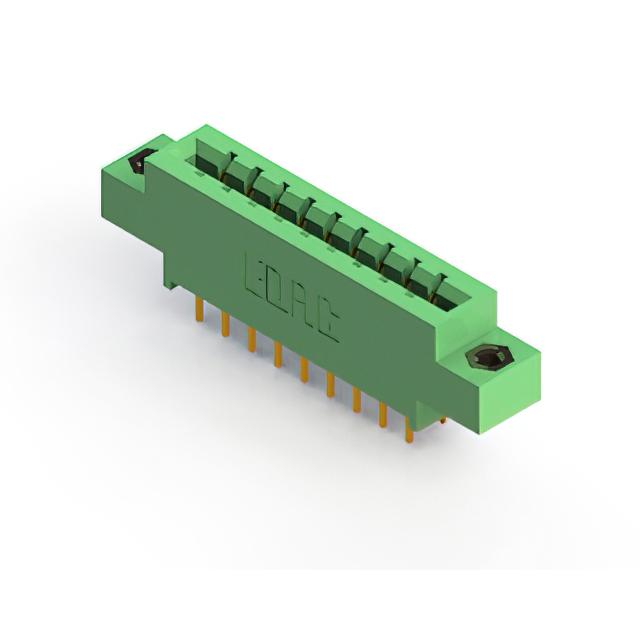

The EDAC Inc. 833-018-523-808 is a standard card edge connector from the 833 series, designed for dual-edge board insertion. It features 18 positions with a 0.156-inch (3.96 mm) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and includes solder pin termination for secure mounting. Rated for 3 A current, it employs a diallyl phthalate (DAP) housing material for durability. This vertical panel-mount component is engineered for robust interconnection in demanding electronic environments.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount style for stable installation
• Solder pin termination for reliable circuit connection

Edgeboard Connectors Applications

• Medical interconnect systems requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control panels needing standardized card edge interfaces

Edgeboard Connectors Procurement Notes

Verify part authenticity through authorized EDAC channels or certified distributors. Confirm that the specific suffix matches the required 18-position dual-edge specification. Check RoHS compliance status if environmental regulations apply to your assembly. Ensure the supplier provides original manufacturer documentation to guarantee performance integrity and traceability for critical applications.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge card interface with a 3.96 mm pitch is required. Verify that the target PCB thickness does not exceed 1.57 mm to ensure proper contact engagement. Consider the 3 A current rating for power distribution needs. Choose the panel mount style if space constraints require vertical orientation relative to the mating board.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent electrical characteristics. The 833 series is widely used in industrial and medical sectors where reliable, high-cycle interconnections are essential for system stability and long-term operational performance.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 18-position count, 3.96 mm pitch, and dual-edge female configuration. Verify identical housing material and current ratings to maintain mechanical and electrical compatibility. Cross-reference with other EDAC series only if form factor adjustments are permissible within the design constraints.
