833-020-523-207

Edgeboard Connectors Overview

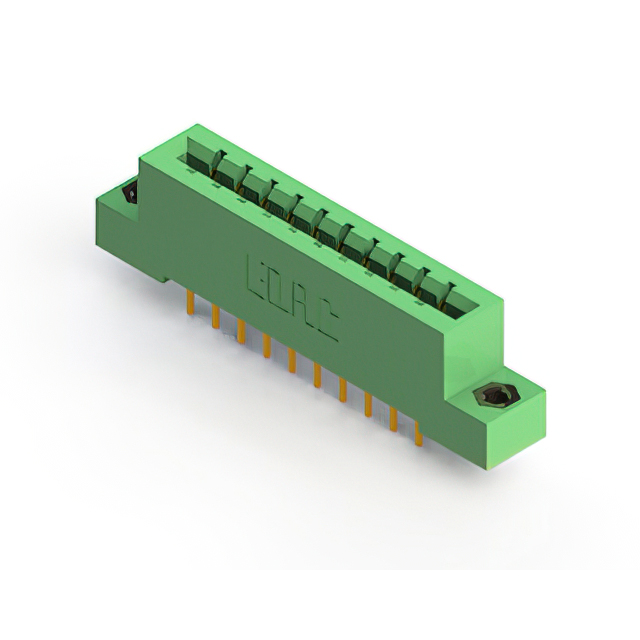

The EDAC Inc. 833-020-523-207 is a standard card edge connector from the 833 series, designed for dual-edge mating applications. It features 20 positions with a pitch of 0.156 inches (3.96 mm). The contacts are gold-plated to ensure reliable signal transmission. This component utilizes a green insulator and is engineered for vertical panel mounting styles, providing secure connections for printed circuit boards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for board insertion
• Gold-plated terminals for enhanced conductivity
• Vertical panel mount design for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment interface modules
• Agricultural technology hardware connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact pin count, plating specification, and insulator color before procurement. Ensure compatibility with the target PCB thickness and mounting requirements. Confirm availability status as supply conditions may vary by region and distributor. Cross-reference the manufacturer part number against official datasheets to validate technical parameters.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with a 3.96 mm pitch is required. Consider the vertical panel mount style for fixed installation needs. Evaluate the gold plating option for environments demanding high corrosion resistance. Verify that the 20-position capacity aligns with the circuit design requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and termination options. It is part of a broader portfolio serving communication, consumer electronics, and industrial sectors. The product line emphasizes durability and reliability in harsh operating environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitutes within the 833 series. Verify mechanical dimensions and electrical ratings before considering alternative manufacturers. No public confirmed substitute part numbers are available in the provided data.
