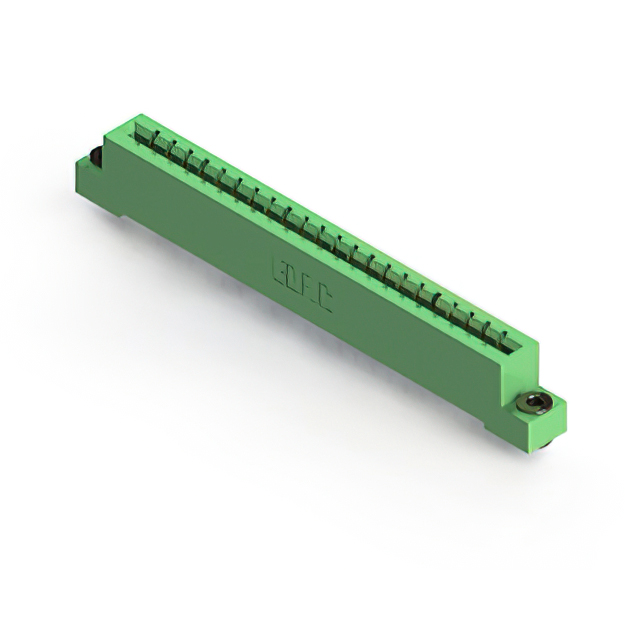

833-022-541-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 22POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 833-022-541-103
- Description：CONN EDGE SGL FMALE 22POS 0.156
- Series：833
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：22
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 833-022-541-103
Edgeboard Connectors Overview
The EDAC Inc. 833-022-541-103 is a standard card edge connector featuring 22 positions with a 3.96 mm (0.156 inch) pitch. It utilizes gold-plated contacts and is designed for single-edge board insertion. The component supports panel mounting at a right angle orientation, accommodating a board thickness of 1.57 mm. It employs solder pin termination for secure electrical connection.
Edgeboard Connectors Feature Summary
- Gold-plated contact surfaces ensure reliable signal transmission and corrosion resistance.
- Right-angle panel mount design facilitates efficient space utilization in enclosed assemblies.
- Solder pin termination provides robust mechanical stability and electrical continuity.
Edgeboard Connectors Applications
- Industrial control system interconnections
- Medical device circuit board interfaces
- Telecommunications equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB edge guide dimensions and panel cutout requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this model when a 22-position interface with a 3.96 mm pitch is required. The right-angle configuration is suitable for applications needing perpendicular board alignment relative to the mounting panel.
Edgeboard Connectors Part Context
This part belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting styles, providing modular solutions for diverse electronic assembly needs across multiple industries.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 833 series variants for different position counts or mounting angles. Verify that substitute parts maintain identical pitch, board thickness tolerance, and current rating specifications.
Edgeboard Connectors FAQ
What is the contact plating material?
The contacts are gold-plated to enhance conductivity and durability.
Is this connector compatible with double-sided boards?
This is a single-edge connector; it is designed for insertion into a single edge of the printed circuit board.
