Edgeboard Connectors Overview

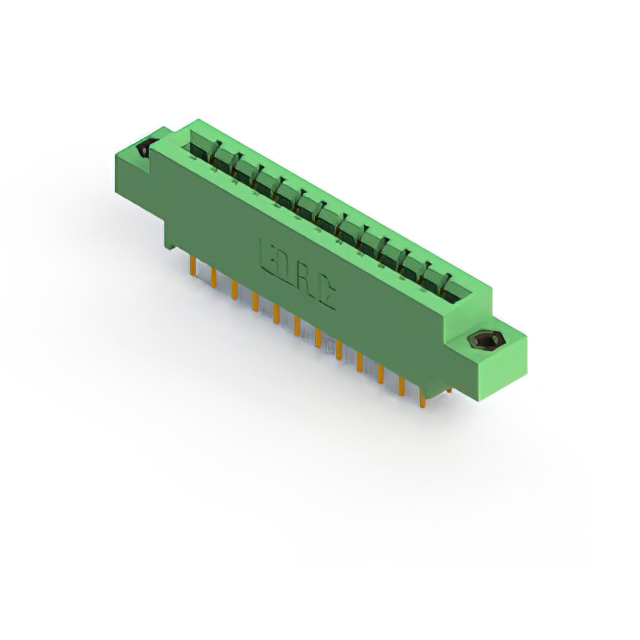

The EDAC Inc. part number 833-024-541-808 is a standard card edge connector belonging to the 833 Series, designed for high-temperature applications. This component features a dual female configuration with 24 positions arranged in two rows. The contact pitch is specified as 0.156 inches (3.96 mm). The insulator material is green thermoplastic, and the contacts are gold-plated copper alloy. It utilizes a solder pin termination style for panel mounting at a vertical angle. The connector supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Dual row female contact configuration for secure card edge mating
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Panel mount vertical installation style provides stable structural support

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh conditions
• Industrial control systems needing high-temperature reliability
• Communication infrastructure components

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact mechanical dimensions and plating specifications. Ensure compatibility with the target PCB card thickness of 1.57 mm before integration. Confirm that the vertical panel mount orientation aligns with the system enclosure design requirements. Cross-reference the 24-position count with the circuit board layout to prevent mismatch errors during assembly.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row card edge interface with a 3.96 mm pitch is required for high-temperature stability. The gold-plated terminals offer superior conductivity compared to tin variants. Consider the vertical panel mount form factor for space-constrained enclosures where board insertion direction is fixed. Verify that the green insulator color coding meets internal visual inspection standards for production lines.

Edgeboard Connectors Part Context

This component is part of the EDAC 833 Series, which specializes in high-temperature card edge connectors. The series is engineered to withstand elevated thermal stresses while maintaining electrical integrity. EDAC designs these connectors for robust performance in industrial and specialized sectors. The 833 Series emphasizes durability and consistent contact resistance across various environmental conditions.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
