833-024-544-104

Edgeboard Connectors Overview

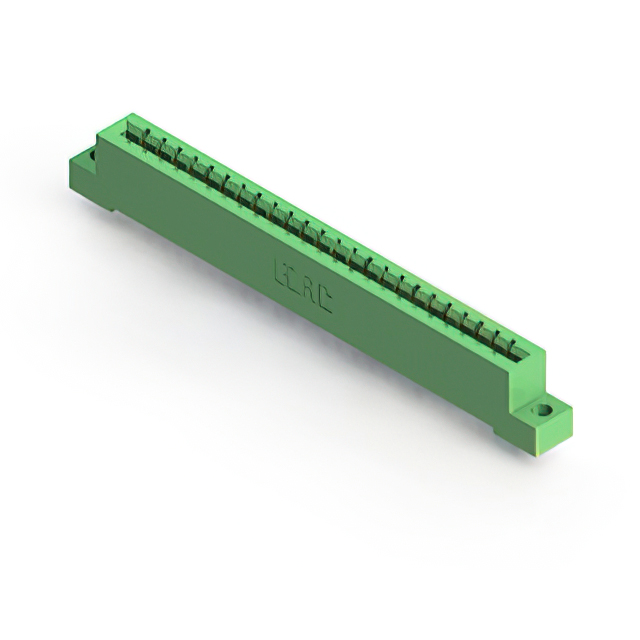

The EDAC 833-024-544-104 is a standard card edge connector from the 833 Series, designed for high-temperature environments. It features 24 positions with a single row configuration and a 3.96 mm pitch. The unit supports a maximum current rating of 3 A and operates within a temperature range of -40°C to +125°C. Electrical specifications include gold-plated copper alloy contacts and an insulation resistance of 5 GOhms. The housing is constructed from Diallyl Phthalate (DAP), and the connector utilizes wire wrap termination for secure circuit board attachment.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding operational environments
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire wrap termination provides robust mechanical connection stability

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the wire wrap termination style matches your assembly requirements. Ensure the panel mount vertical orientation fits your enclosure design constraints. Cross-reference the 3.96 mm pitch and 1.57 mm board thickness compatibility with your printed circuit board layout.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance up to 125°C is required for card edge applications. Choose the 833 series for its durable DAP housing material and gold contact plating. Consider the wire wrap termination method if through-hole soldering is not preferred. Verify that the single-row, 24-position layout aligns with your signal routing needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 Series, which specializes in high-temperature card edge connectors. The series is engineered for reliability in harsh conditions, utilizing robust materials like DAP insulators. It serves as a specialized solution for industries requiring stable connections under thermal stress, distinct from standard commercial-grade connectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-references. Similar parts in the 833 series may vary by position count or termination type. Verify electrical ratings and physical dimensions before substituting.
