833-032-500-602

Edgeboard Connectors Overview

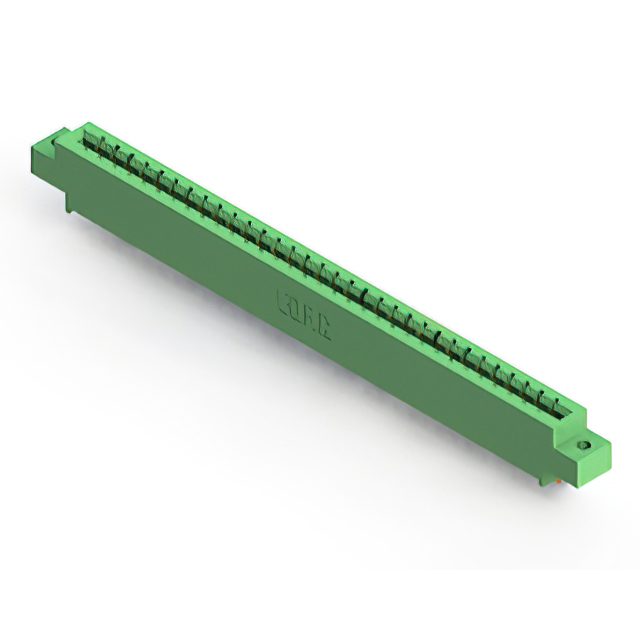

The EDAC Inc. 833-032-500-602 is a standard card edge connector from the 833 Series, designed for high-temperature applications. It features 32 positions with a single row of female contacts. The connector utilizes a 3.96 mm (0.156 inch) pitch and is compatible with PCBs having a thickness of 1.57 mm. It employs gold-plated copper alloy contacts and a green Diallyl Phthalate (DAP) insulator. The unit supports wire wrap termination and is intended for panel mount installation at a vertical angle.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Single-row female configuration provides standardized interface compatibility
• Wire wrap termination style offers secure mechanical and electrical connections

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment utilizing specialized interconnect solutions
• Agricultural technology hardware exposed to harsh environments
• Communication infrastructure components

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications before integration. Confirm that the supplier provides official documentation to ensure authenticity. Check regional availability restrictions as distribution may vary by location. Ensure the procurement channel is authorized to guarantee product integrity and compliance with RoHS standards.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge connector with a 3.96 mm pitch is required. The high-temperature rating makes it suitable for applications exceeding standard operating limits. Verify that the PCB thickness aligns with the 1.57 mm specification. Consider the wire wrap termination method if through-board wiring is preferred over surface mount alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 833 Series, which focuses on high-temperature performance. The series includes various position counts and configurations tailored for industrial and medical sectors. EDAC designs these connectors to withstand rigorous environmental conditions while maintaining electrical stability in critical data and power transmission roles.
