833-036-558-104

Edgeboard Connectors Overview

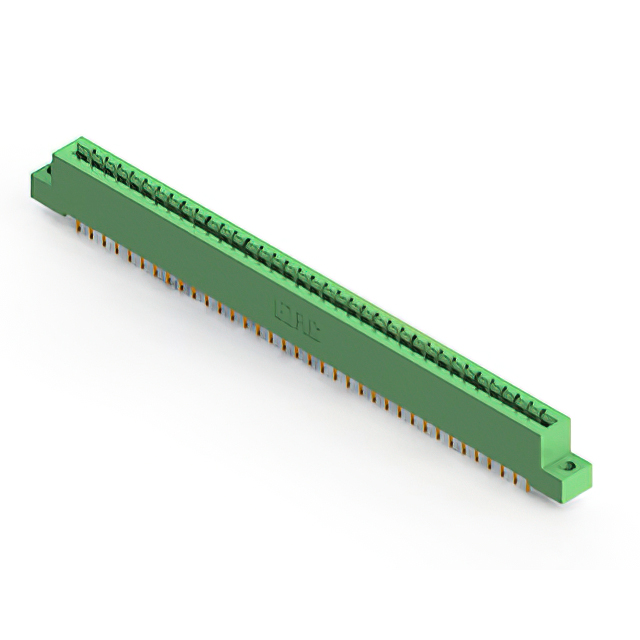

The EDAC Inc. model 833-036-558-104 is a standard card edge connector designed for panel mounting applications. It features a single row with 36 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) insulator body. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches) and employs solder pin termination.

Edgeboard Connectors Feature Summary

• Accepts PCBs with a nominal thickness of 1.57 mm
• Features high-profile insulator body construction
• Utilizes gold-plated copper alloy contacts for reliable conductivity

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies
• Standard card edge interconnection systems
• Industrial control hardware integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact configuration, including row count, contact plating, and board thickness compatibility. Ensure the selected variant matches the required mechanical interface and electrical ratings for the target application before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 36-position connection is required for 1.57 mm thick boards. Confirm that the 3.96 mm pitch aligns with the design layout and that panel mounting is the preferred installation method for the enclosure structure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series of standard card edge connectors. The series provides various position counts and mounting options for connecting edge-board circuits to backplanes or chassis-mounted interfaces in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 833 series variants such as 833-010-558-103 or 833-031-520-112 for different position counts. Verify mechanical dimensions and electrical ratings match before substituting.
