833-043-542-602

Edgeboard Connectors Overview

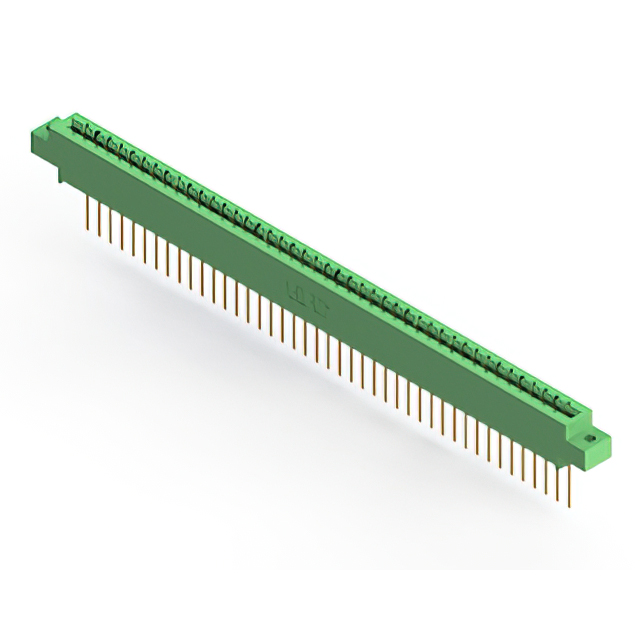

The EDAC Inc. 833-043-542-602 is a standard card edge connector from the 833 series, designed for high-temperature applications. It features 43 positions with a single row configuration and a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts. Housing material is green thermoplastic polyester. It employs a panel mount style with a vertical orientation and wire wrap termination.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Vertical panel mount design facilitates secure structural integration

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh conditions
• Industrial control systems needing robust panel-mounted interfaces

Edgeboard Connectors Procurement Notes

Verify specific regional availability as distribution may be restricted in certain areas. Confirm that the wire wrap termination method aligns with your assembly process requirements. Ensure the panel mounting orientation matches your mechanical design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector is required for high-temperature stability. The 43-position count and 3.96 mm pitch must match the target PCB edge specifications. Verify compatibility with wire wrap termination techniques during the design phase to ensure proper electrical connection integrity.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series, which specializes in high-temperature card edge connectors. The series offers various position counts and housing colors to suit different application needs. EDAC provides comprehensive interconnect solutions across medical, agricultural, and industrial sectors, emphasizing durability and reliability in challenging operational environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitutes within the 833 series. Verify that any alternative maintains identical pitch, position count, and termination type. Cross-reference mechanical dimensions to ensure panel fitment compatibility without modifying existing enclosure designs.
