Edgeboard Connectors Overview

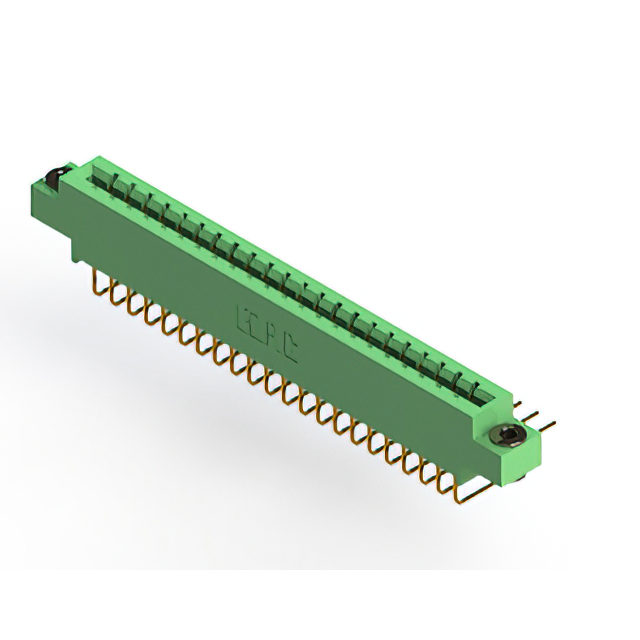

The EDAC Inc. 833-044-558-803 is a standard card edge connector from the 833 series, designed for panel mount applications with a right-angle orientation. It features 44 positions with a pitch of 3.96 mm and supports a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, and utilize solder pin termination. The housing is constructed from diallyl phthalate (DAP).

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating.
• Gold-plated copper alloy contacts ensure reliable conductivity.
• Panel mount installation with right-angle orientation.
• Solder pin termination for robust PCB connection.

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects.
• Medical equipment interfaces needing durable connections.
• Agricultural technology hardware exposed to harsh environments.
• Communication infrastructure modules.

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes against official EDAC documentation to confirm specific plating thickness or material variants. Confirm RoHS compliance status through the manufacturer's latest datasheet, as regulatory updates may occur. Ensure the receiving facility has appropriate handling procedures for sensitive electronic components upon arrival.

Edgeboard Connectors Selection Notes

Select this component when a 44-position dual female card edge connector is required for panel-mounted applications. The 3.96 mm pitch and 1.57 mm board thickness compatibility must match the design specifications. Consider the right-angle form factor for space-constrained layouts where vertical clearance is limited compared to straight-mount alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 833 series, which offers various position counts and mounting styles. The series is known for durability in industrial and medical sectors. Similar parts in the series include different position counts like 10, 31, or 37 positions, sharing the same 3.96 mm pitch and DAP housing material characteristics.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the EDAC 833 series require matching the 44-position count and dual female configuration. Verify that alternative part numbers maintain the identical 3.96 mm pitch and 1.57 mm board thickness tolerance to ensure mechanical fit without modification.
