833-046-560-201

Edgeboard Connectors Overview

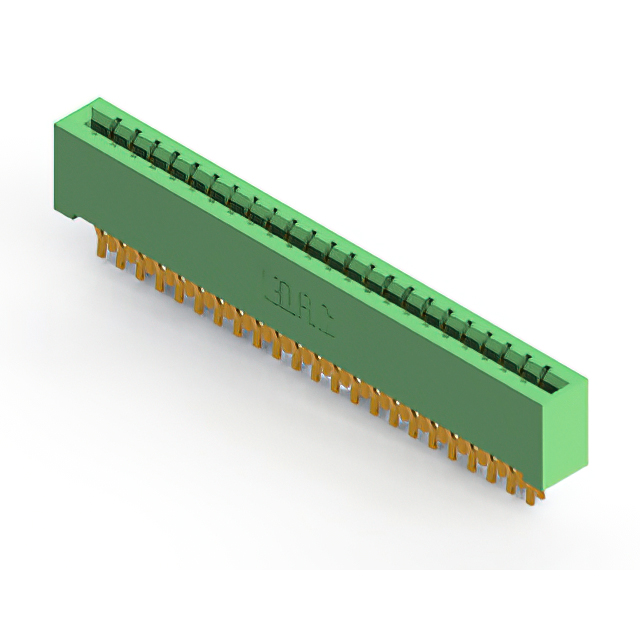

The EDAC Inc. part number 833-046-560-201 is a standard card edge connector belonging to the 833 Series. It features a dual female configuration with 46 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) pitch and is designed for panel mount installation at a vertical angle. Contact surfaces are gold-plated copper alloy, rated for 3 A current and supporting an insulation resistance of 5 GOhms. The housing is constructed from Diallyl Phthalate (DAP), enabling operation within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for robust board interface
• Gold-plated copper alloy contacts ensure reliable conductivity
• Vertical panel mount style facilitates structured assembly
• High-temperature resistant DAP housing material

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Communication equipment backplanes
• Medical device interconnects
• Energy sector hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact pin count, plating thickness, and termination type. Ensure compatibility with the target PCB edge thickness and mounting constraints before procurement. Cross-reference the manufacturer's latest documentation to validate that the component meets current environmental compliance standards and operational specifications required for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge connector with high-temperature capability is required. The 46-position layout suits applications needing moderate signal density. Verify that the 0.156-inch pitch aligns with the design rules of the mating circuit board. Consider the DAP housing material for thermal resilience and the gold plating for long-term contact reliability in demanding industrial or medical environments.

Edgeboard Connectors Part Context

This component is part of the EDAC 833 Series, which specializes in high-temperature standard card edge connectors. The series is characterized by its use of Diallyl Phthalate (DAP) for superior thermal performance compared to standard materials. These connectors are engineered for durability in harsh environments, offering reliable electrical connections across a wide temperature spectrum while maintaining precise mechanical alignment.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the official EDAC catalog for direct replacements within the 833 Series or cross-reference compatible dual-row card edge connectors with identical 0.156-inch pitch and 46-position configurations.
