Edgeboard Connectors Overview

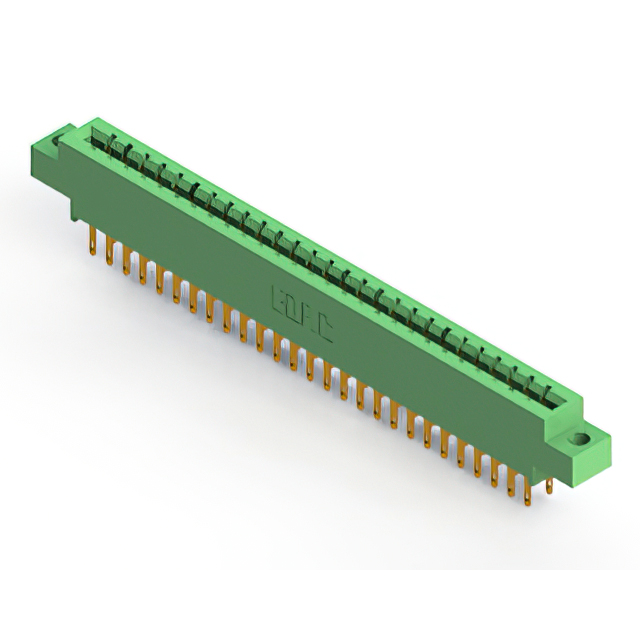

The EDAC Inc. 833-054-500-804 is a standard card edge connector featuring 54 positions with a 3.96 mm pitch. Designed for panel mounting at a vertical angle, it utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) housing. The component supports a current rating of 3 A and an insulation resistance of 5 GOhms. It operates within a temperature range of -40°C to +125°C and accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure installation
• Gold-plated copper alloy contacts for reliable conductivity
• Diallyl Phthalate (DAP) housing material for durability

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct contact plating and housing variations. Confirm RoHS compliance status through the manufacturer's datasheet before integration. Check regional distribution availability as supply may be restricted in certain areas. Ensure the selected variant matches the required board thickness and mounting style specifications.

Edgeboard Connectors Selection Notes

Select this model when a 54-position vertical interface with 3.96 mm spacing is required. Verify that the 1.57 mm board thickness compatibility aligns with the PCB design. Consider the 3 A current rating and high insulation resistance for robust signal integrity. Confirm the DAP housing material meets environmental requirements for the intended application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series provides various position counts and configurations for diverse electronic applications. EDAC specializes in interconnect solutions for medical and agricultural sectors, emphasizing reliability in harsh environments. This specific part number represents a high-density option within the standard lineup.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 833-series variants for different position counts or mounting styles. Verify mechanical dimensions and electrical ratings against alternative suppliers' components. Ensure pinout compatibility and housing material properties match the original design requirements.
