833-060-520-201

Edgeboard Connectors Overview

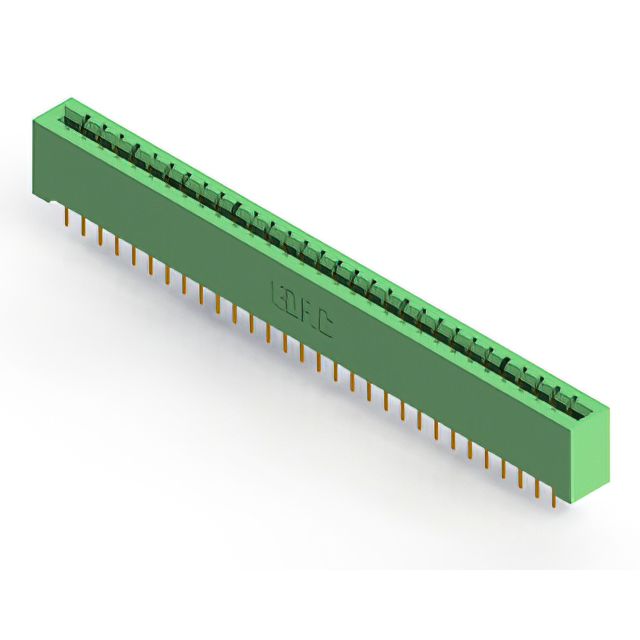

The EDAC 833-060-520-201 is a standard card edge connector from the 833 Series, designed for high-temperature applications. It features 60 positions with a pitch of 3.96 mm (0.156 inches) and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) housing. It employs a solder pin termination type and is intended for panel mounting in a vertical orientation.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Gold-plated contacts ensure reliable signal transmission
• Vertical panel mount design for secure installation

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify availability through authorized distributors as supply may be restricted. Confirm RoHS compliance details via official datasheets. Ensure compatibility with specified board thickness and mounting requirements before procurement.

Edgeboard Connectors Selection Notes

Select this model for applications requiring high-temperature resistance and robust connectivity. Verify that the 60-position count and 3.96 mm pitch match the PCB layout. Consider the vertical panel mount style for system integration needs.

Edgeboard Connectors Part Context

Part of the EDAC 833 Series, which offers standard card edge connectors. This series includes various position counts and configurations to support diverse electronic interconnection requirements across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for confirmed substitute part numbers. Cross-reference specifications such as pitch, position count, and termination type when evaluating alternatives.
