Edgeboard Connectors Overview

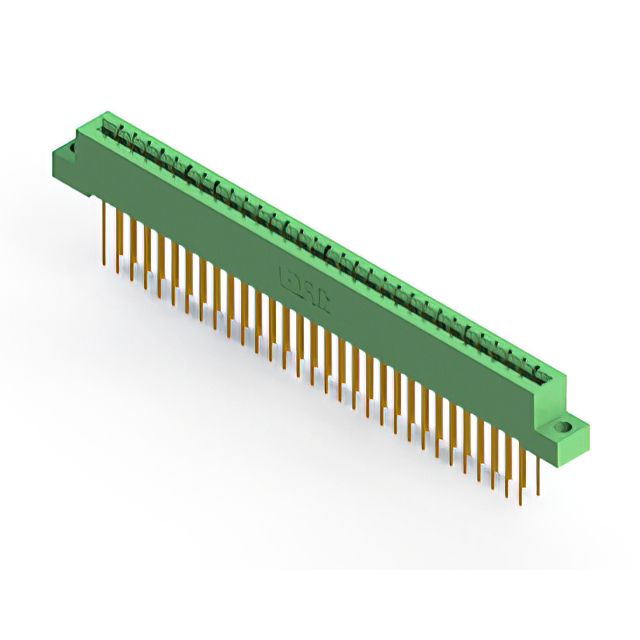

The EDAC Inc. model 833-062-541-204 is a standard card edge connector belonging to the 833 series. It features 62 positions with a contact spacing of 0.156 inches (3.96 mm). The component utilizes dual female contacts and is designed for panel mounting at a vertical angle. The insulator material is diallyl phthalate (DAP), and the contacts are gold-plated copper alloy. This connector supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C.
