833-062-560-807

Edgeboard Connectors Overview

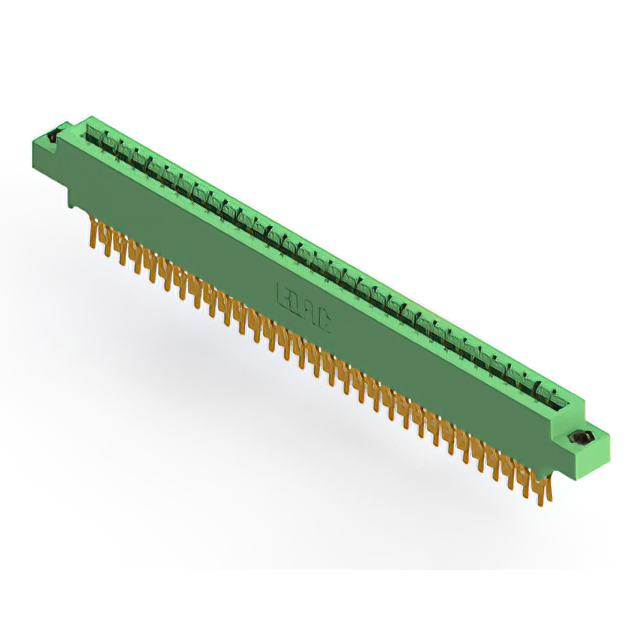

The EDAC Inc. 833-062-560-807 is a standard card edge connector designed for dual-edge mating configurations. It features a 62-position layout with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The connector utilizes gold-plated contacts to ensure reliable signal transmission. It is engineered to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The housing is constructed from green insulating material, providing high-profile body characteristics suitable for panel mount installations.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated terminals for enhanced conductivity and corrosion resistance
• High-profile insulator body design for structural stability
• Panel mount installation style for fixed application support

Edgeboard Connectors Applications

• Industrial control system interface connections
• Medical device internal module interconnects
• Agricultural technology equipment circuitry
• General-purpose electronic board stacking applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 0.062 inches before integration. Confirm that the panel mount requirement aligns with the mechanical constraints of the final assembly enclosure. Cross-reference the 62-position count with the schematic requirements to prevent pinout mismatches during production.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 62-line interface. The 3.96 mm pitch dictates the trace routing density on the mating card. Verify that the green insulator color meets any visual identification standards within the assembly. Consider the vertical mounting orientation and ensure sufficient clearance above the board for the high-profile body height during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series of standard card edge connectors. The series is characterized by robust construction for general industrial and commercial use. The numbering convention indicates position count, pitch, and mounting style variations within the family. This specific model represents a mid-range position count option within the broader catalog of available configurations.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate cross-referencing only if the original part is discontinued, ensuring identical pitch, position count, and mounting style. No direct equivalent substitutes are listed in the source material.
