Edgeboard Connectors Overview

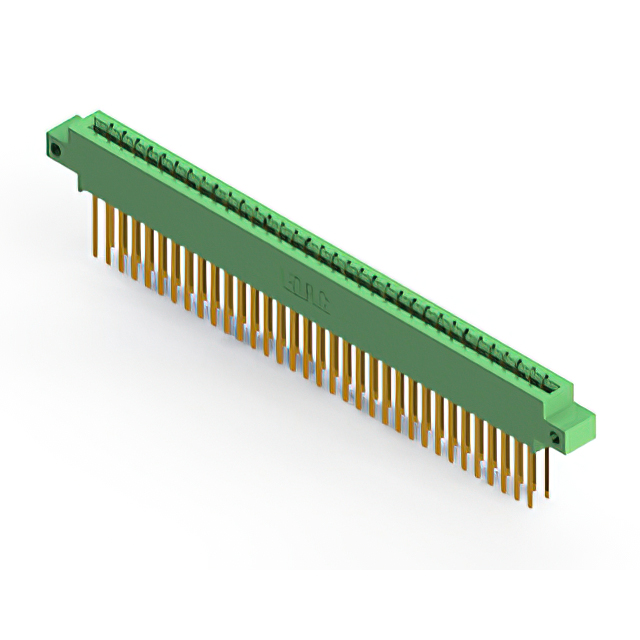

The EDAC 833-068-544-812 is a standard card edge connector featuring 68 positions with dual female contacts. It utilizes a 3.96 mm (0.156 inch) contact spacing and a 5.08 mm row spacing. Designed for panel mounting at a vertical angle, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 3 A current, while the housing is constructed from diallyl phthalate.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• High-profile insulator body construction for structural stability
• Gold-plated copper alloy contacts ensuring reliable conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment interface connections
• Agricultural technology hardware integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the vertical panel mount style aligns with the mechanical enclosure design requirements for the intended assembly.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with 68 positions is required within a limited footprint. The 3.96 mm pitch accommodates larger traces compared to finer pitches. Verify that the diallyl phthalate housing material meets the thermal and chemical resistance requirements of the operating environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series, which provides standard card edge connectors for various industrial applications. The series offers multiple position counts and mounting styles. This specific model represents a mid-range density option suitable for general-purpose electronic assemblies needing durable panel-mounted interfaces.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 833 series variants with matching 68-position counts and 3.96 mm spacing. Cross-brand replacements require verifying identical pinout, board thickness tolerance, and mounting geometry to ensure mechanical fit.
