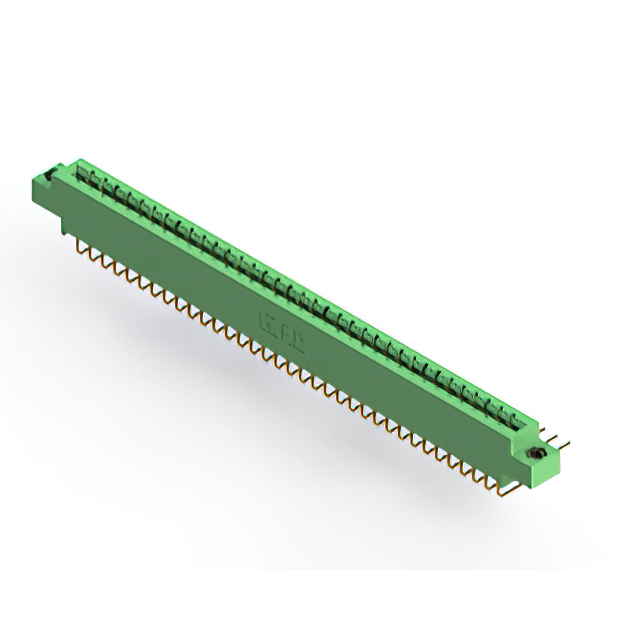

833-070-559-808 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 70POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 833-070-559-808
- Description：CONN EDGE DUAL FMALE 70POS 0.156
- Series：833
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：35
- Number of Positions：70
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 833-070-559-808
Edgeboard Connectors Overview
The EDAC Inc. 833-070-559-808 is a standard card edge connector from the 833 series, designed for dual-edge board insertion. It features 70 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts with a cantilever contact type and solder pin termination. Rated for 3 A current, it operates within a temperature range of -40°C to +125°C and offers an insulation resistance of 5 GOhms.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure dual-edge board mating
- Gold-plated cantilever contacts ensure reliable signal transmission
- Solder pin termination provides stable through-hole mounting
- Thermoplastic housing material offers structural durability
Edgeboard Connectors Applications
- Medical interconnect solutions requiring robust connectivity
- Agricultural technology systems operating in harsh environments
- Industrial control boards utilizing standard card edge interfaces
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the dual-edge female configuration aligns with your PCB layout specifications. Confirm that the solder pin termination method matches your assembly process capabilities. Check for any regional distribution restrictions or supply limitations before finalizing procurement plans.
Edgeboard Connectors Selection Notes
Select this component when a high-density 70-position interface is required with a 3.96 mm pitch. The dual-row configuration is suitable for applications needing extensive I/O connections on a single edge. Verify that the 1.57 mm board thickness tolerance fits your PCB stack-up. Consider the -40°C to +125°C operating range for environmental suitability.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 833 series of standard card edge connectors. The series is characterized by its use of copper alloy contacts and gold plating for corrosion resistance. The 833 series is often utilized in specialized sectors such as medical and agricultural technologies where reliability under demanding conditions is essential.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers. Cross-reference pitch, position count, and termination style when evaluating alternatives.
