833-078-560-201

Edgeboard Connectors Overview

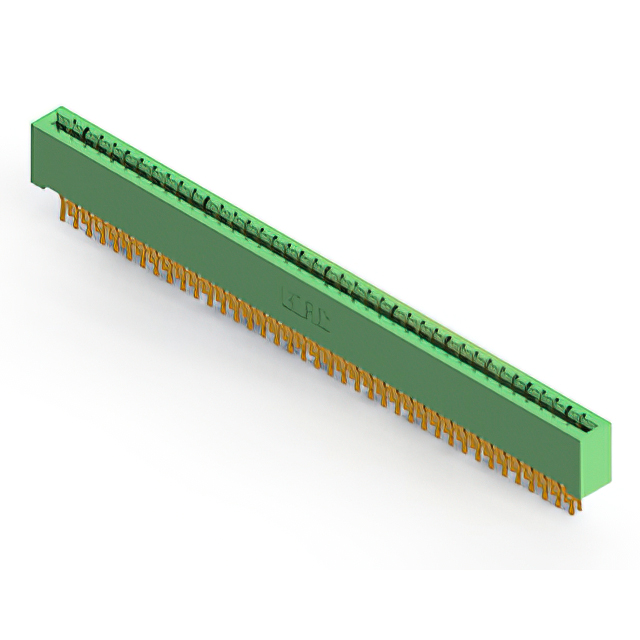

The EDAC Inc. 833-078-560-201 is a standard card edge connector from the 833 series, designed for high-temperature environments. It features 78 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) housing. Rated for 3 A current, it operates between -40°C and +125°C with an insulation resistance of 5 GOhms. This right-angle, panel-mount device employs solder pin termination.

Edgeboard Connectors Feature Summary

• Engineered for high-temperature applications using durable DAP insulators
• Provides reliable electrical connections via gold-plated copper alloy contacts
• Supports secure panel mounting with right-angle orientation

Edgeboard Connectors Applications

• Medical interconnect systems requiring thermal stability
• Agricultural technology equipment exposed to harsh conditions
• Industrial control panels utilizing card edge interfaces

Edgeboard Connectors Procurement Notes

Verify specific availability through authorized distributors as supply may be restricted in certain regions. Confirm RoHS compliance status directly with the manufacturer or supplier documentation before procurement. Ensure that the ordering suffix matches the required configuration exactly, as variations exist within the series. Cross-reference the datasheet for precise dimensional tolerances to guarantee mechanical fit within the target assembly.

Edgeboard Connectors Selection Notes

Select this model when high-temperature performance exceeding standard limits is required. The 3.96 mm pitch accommodates specific board layouts while maintaining signal integrity. Verify that the application environment stays within the specified -40°C to +125°C range. Consider the right-angle form factor for space-constrained panel installations where vertical clearance is limited.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series, which specializes in high-temperature card edge connectors. The series offers various position counts and row configurations to suit diverse interface needs. It is distinct from lower-temperature standard series and focuses on durability in demanding operational settings.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult the official EDAC ordering guide for compatible alternatives within the same series.
