833-084-500-808

Edgeboard Connectors Overview

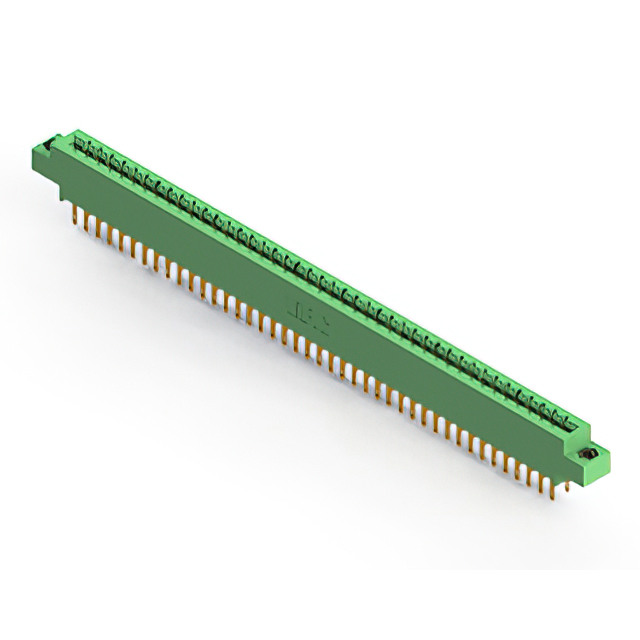

The EDAC Inc. part number 833-084-500-808 is a standard card edge connector designed for dual female contact configurations. This component features 84 positions with a pitch of 0.156 inches, facilitating robust signal transmission in high-density electronic assemblies. The connector supports board thicknesses compatible with standard industrial specifications and utilizes gold-plated contacts to ensure reliable conductivity and corrosion resistance over extended operational cycles.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for comprehensive circuit interfacing
• Gold-plated termination surfaces ensuring stable electrical performance
• Standard card edge interface design for secure PCB mounting

Edgeboard Connectors Applications

• Industrial control system interconnections
• Medical device internal circuitry
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version corresponding to the 833 series before integration. Confirm that the target printed circuit board thickness aligns with the connector's mechanical retention requirements. Ensure that the mating card edge thickness falls within the specified tolerance range to maintain proper contact pressure and signal integrity during operation.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with 84 positions is required. The 0.156-inch pitch dictates the trace spacing on the mating card. Verify compatibility with existing panel mount or vertical installation constraints. Consider the gold plating finish if environmental exposure necessitates enhanced corrosion protection compared to tin alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 833 series, which specializes in standard card edge solutions. The series offers various position counts and termination options to suit diverse electronic packaging needs. It is engineered for applications requiring durable, high-reliability connections between rigid boards and flexible or semi-rigid interconnects.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 833 series variants for different position counts. Verify mechanical footprint compatibility before substituting with connectors from other manufacturers. Ensure that the replacement maintains the same 0.156-inch pitch and dual female contact architecture.
