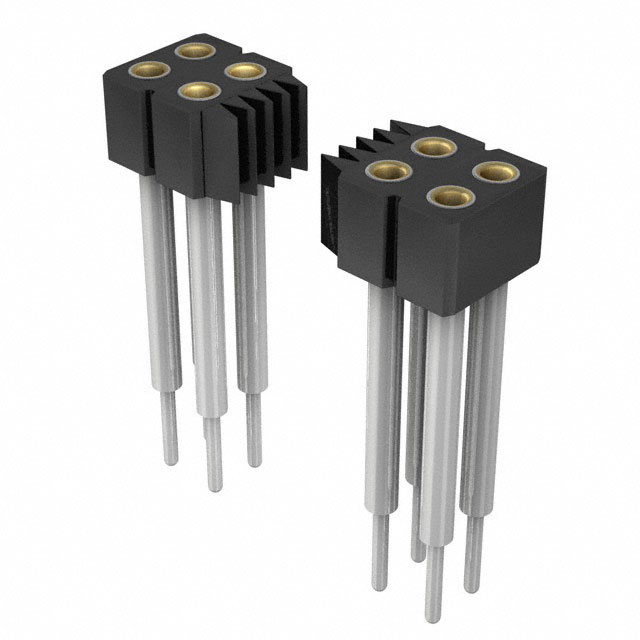

833-87-052-10-287101

833-87-052-10-287101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 52POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 833-87-052-10-287101

• Description：CONN SOCKET 52POS 0.079 GOLD PCB
• Series：833
• Mfr：Preci-Dip
• Package：Bulk
• Connector Type：Socket
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：52
• Number of Positions Loaded：All
• Pitch - Mating：0.079" (2.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Insulation Color：Black
• Insulation Height：0.453" (11.50mm)
• Contact Length - Post：0.125" (3.18mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 833-87-052-10-287101
