837-012-500-101

Edgeboard Connectors Overview

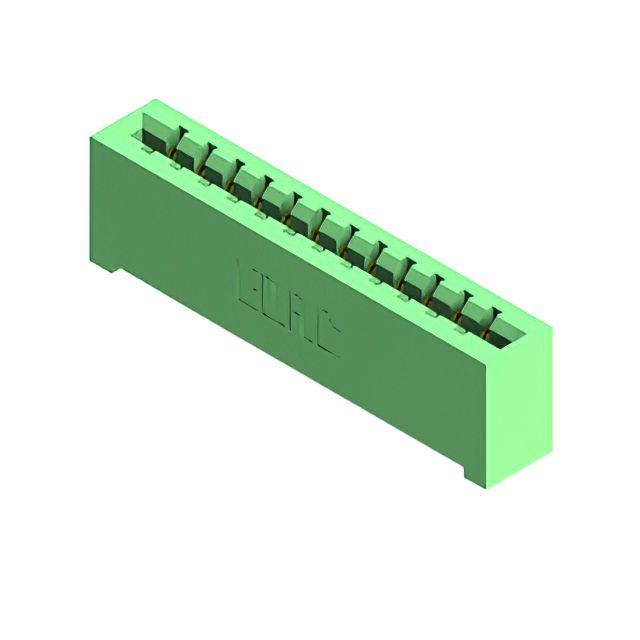

The EDAC Inc. 837-012-500-101 is a single-row card edge connector designed for through-hole mounting. It features 12 female positions with a 0.156-inch (3.96mm) contact spacing. The connector utilizes copper alloy cantilever contacts with a gold plating thickness of 10.0µin (0.25µm). It accommodates board thicknesses between 0.054 and 0.070 inches. The insulator is constructed from DAP material, colored green, and supports an operating temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Single-edge female configuration with cantilever spring contacts
• Gold-plated copper alloy terminals for reliable signal transmission
• High-temperature resistant DAP insulator construction
• Through-hole termination method for secure PCB integration

Edgeboard Connectors Applications

• High-temperature electronic circuit interconnections
• Industrial control system backplanes
• Communication equipment signal routing
• Automotive electronics module connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct termination style and flange specifications. Confirm RoHS compliance status and specific packaging quantities required for production runs. Cross-reference the manufacturer's latest ordering guide to validate current availability and lead times against project schedules.

Edgeboard Connectors Selection Notes

Select this component when a single-row, high-temperature solution is required for boards up to 0.070 inches thick. Ensure the mating card edge thickness falls within the specified tolerance range. Verify that the 0.156-inch pitch aligns with the design layout requirements and that through-hole assembly processes are compatible with the terminal geometry.

Edgeboard Connectors Part Context

This model belongs to the EDAC 837 High Temp Series, characterized by specialized materials for elevated thermal environments. The series offers various pin counts and termination options, utilizing robust DAP insulators and gold-plated contacts to maintain performance in demanding industrial and aerospace applications where standard connectors may fail.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 837/887 Series Ordering Guide for direct substitutes with matching pin counts and termination styles. Verify compatibility regarding flange dimensions and mounting hole configurations before replacing existing inventory.
