Edgeboard Connectors Overview

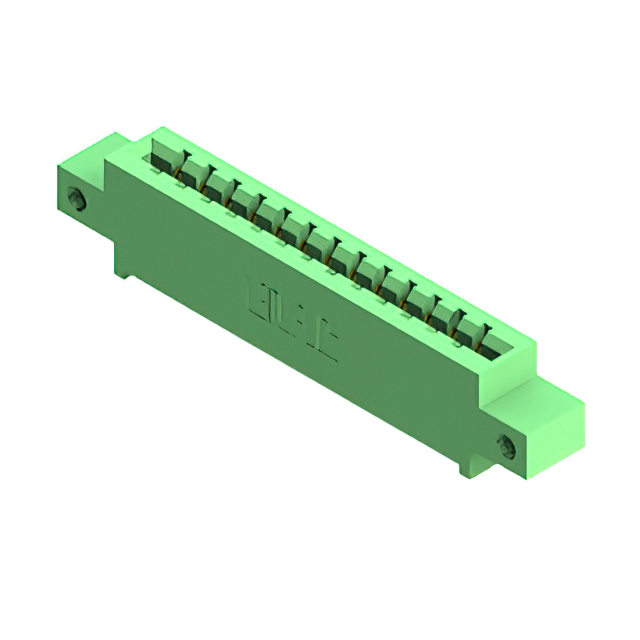

The EDAC Inc. 837-013-524-612 is a single-row female card edge connector designed for high-temperature applications within the 837 series. It features 13 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated cantilever contacts and is constructed with a green Diallyl Phthalate (DAP) insulator. It supports wire wrap termination and accommodates board thicknesses between 0.054 and 0.070 inches. The unit operates reliably within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Gold-plated cantilever contacts ensure reliable signal transmission
• Green Diallyl Phthalate (DAP) insulator provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics operating under elevated temperatures
• Aerospace and defense equipment with strict reliability standards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 837 Series Ordering Guide to confirm exact pin count, termination style, and mounting configuration. Ensure compatibility with target PCB thickness and panel mounting requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a single-edge female connector with wire wrap termination is required. Confirm that the application environment stays within the specified -40°C to 15°C operational range. Verify that the PCB stack-up allows for the necessary 0.156-inch spacing and that the housing material meets chemical resistance needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 837 High Temperature Series, which specializes in connectors capable of withstanding extreme thermal conditions. The series offers various configurations including different pin counts and termination types, making it suitable for specialized industrial and military applications where standard connectors may fail due to heat stress.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 837 Series cross-reference documentation for direct substitutes. Alternative models may vary in termination style or flange characteristics. Ensure any replacement maintains the same contact spacing and board thickness tolerance to preserve mechanical fit.
