837-018-558-201

Edgeboard Connectors Overview

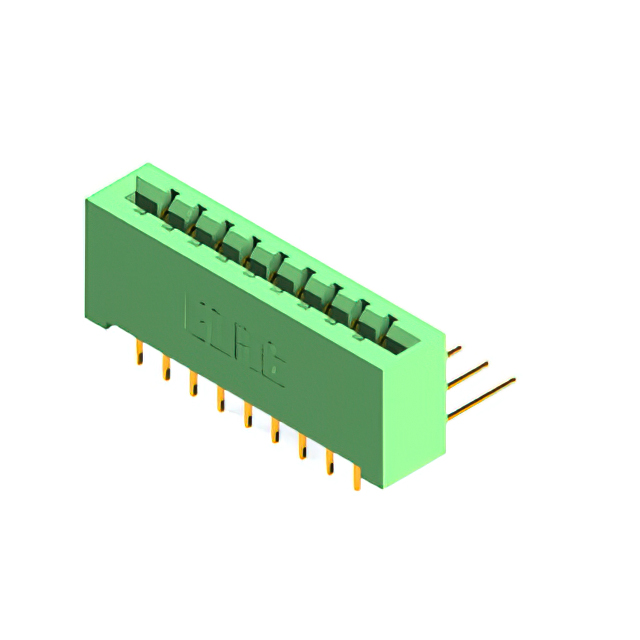

The EDAC Inc. 837-018-558-201 is a dual-edge female card edge connector designed for high-temperature applications. It features an 18-position configuration with gold-plated contacts and a black insulator body. The component utilizes a 0.156-inch (3.96mm) contact spacing and a 0.200-inch (5.08mm) row spacing. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The connector employs a high-profile insulator body and supports surface mount termination methods.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Dual-edge female design accommodating standard card edge PCBs
• Gold-plated contacts ensure reliable signal transmission
• High-profile insulator body provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring thermal resilience
• Medical equipment with strict reliability standards
• Computer hardware interfaces
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting options. Ensure the ordering part number matches the required board thickness and contact plating specifications. Cross-reference the manufacturer's latest datasheet to confirm compliance with current environmental regulations and material compositions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical for the application environment. The dual-edge configuration requires compatible mating cards with precise edge guide dimensions. Verify that the PCB thickness aligns with the 0.062-inch specification to ensure proper contact engagement. Consider the high-profile body height for adequate clearance within the assembly enclosure.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 837 High Temperature Series, which specializes in robust interconnect solutions for harsh operating conditions. The series offers various position counts and termination styles to accommodate diverse board layouts. These components are engineered for durability and consistent electrical performance across computer, industrial, and medical sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 837 series variants with matching pin counts and spacing. Verify compatibility with existing board designs before swapping. Generic equivalents may lack the specified high-temperature ratings or gold plating quality.
