837-033-540-102

Edgeboard Connectors Overview

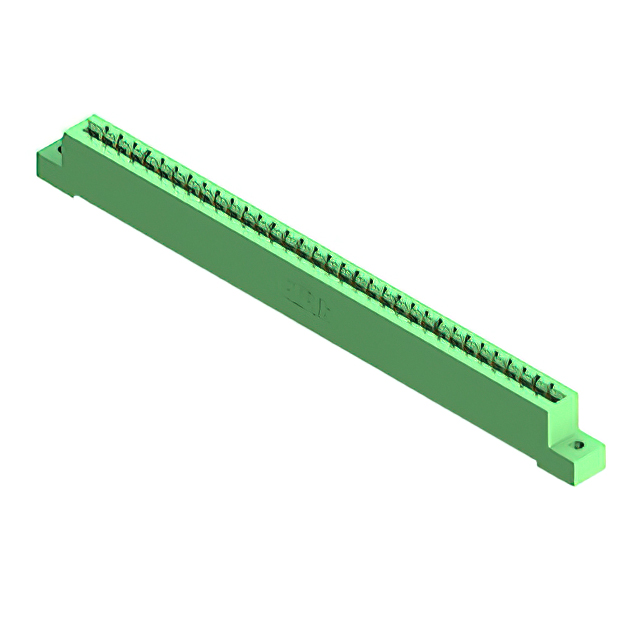

The EDAC Inc. part number 837-033-540-102 is a standard card edge connector from the 837 High Temperature Series. It features 33 positions with a single row configuration and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes female contacts with gold plating and is designed for non-specified single-edge cards. It employs a flush mounting style and uses diallyl phthalate (DAP) as the insulator material, which is green in color.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Single-row female contact design for reliable signal transmission
• Flush mounting option provides secure panel installation

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Communication equipment interfaces
• Automotive electronics applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required termination types and mounting configurations. Confirm that the DAP insulator material meets the thermal requirements of the target application environment. Cross-reference the single-edge card specification to guarantee mechanical fit within the assembly constraints.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 33 positions is required. Ensure the board thickness accommodates the specified contact length. Verify that the flush mounting style aligns with the chassis design. Consider the high-temperature rating if the operating environment exceeds standard commercial limits.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 837 series, which specializes in high-temperature card edge solutions. The series offers various position counts and termination options. The 837-033 variant specifically addresses applications needing a higher density single-row connection while maintaining robust thermal performance characteristics.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 837 models with matching pitch and position counts. Verify equivalent thermal ratings and mounting styles before substitution. Consult official cross-reference guides for compatible alternatives.
