837-058-500-201

Edgeboard Connectors Overview

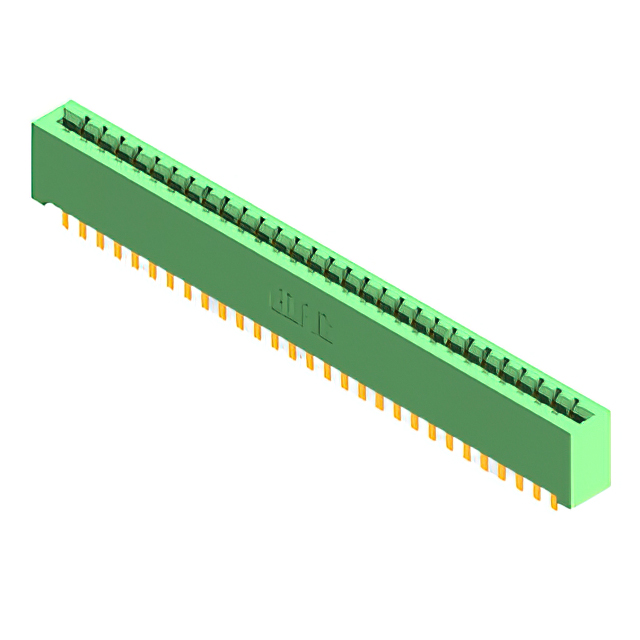

The EDAC Inc. 837-058-500-201 is a high-temperature card edge connector from the 837 series, designed for reliable signal transmission in demanding environments. This dual female receptacle features 58 positions with a 0.156-inch (3.96mm) pitch. It utilizes wire wrap termination and copper alloy contacts with gold plating. The unit supports PCB thicknesses of 1.57mm and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for thermal stress applications
• Dual female configuration providing extensive I/O connectivity
• Gold-plated copper alloy contacts ensure durable electrical performance
• Wire wrap termination method for secure board mounting

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Automotive electronics under hood applications
• Aerospace and defense communication equipment
• Military avionics and instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to confirm specific orientation and packaging details. Confirm RoHS compliance status and lead times directly with authorized distributors. Ensure compatibility with specified PCB thickness and mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-temperature resilience and dual-sided connectivity are required. The 0.156-inch pitch accommodates standard card edge designs. Verify that the wire wrap termination aligns with assembly capabilities and that the 58-position count matches circuit interface needs.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 837 High Temperature Series, engineered for superior thermal endurance compared to standard connectors. The series offers various position counts and configurations, maintaining consistent mechanical and electrical specifications across the lineup for scalable design integration.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 837 series variants for alternative position counts. Verify mechanical dimensions and pinout compatibility before substituting with similar high-temperature card edge connectors from different manufacturers.
