842-005-559-101

Edgeboard Connectors Overview

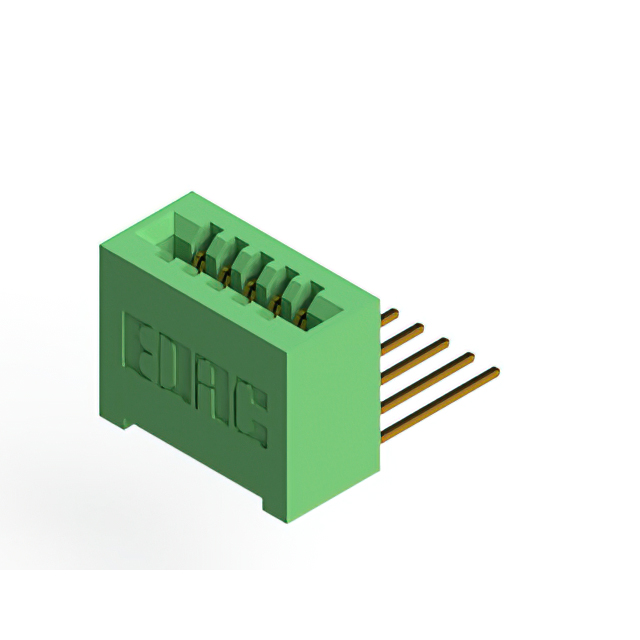

The EDAC Inc. 842-005-559-101 is a standard high-temperature card edge connector receptacle designed for reliable signal transmission in demanding environments. This component features five positions arranged in a single row with a 0.1-inch (2.54 mm) pitch. It utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. The unit employs a solder pin termination method and is configured for right-angle through-hole mounting. The insulator is constructed from green material, providing structural integrity and electrical isolation.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for harsh operational conditions
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Right-angle through-hole mounting configuration for efficient board space utilization

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control systems utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes against official manufacturer documentation to confirm specific plating thickness, insulation material properties, and mounting orientation. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference datasheet specifications for thermal ratings and current carrying capacity requirements.

Edgeboard Connectors Selection Notes

Select this component when a single-row, five-position interface is required with right-angle routing capabilities. The high-temperature rating makes it appropriate for applications exceeding standard commercial temperature ranges. Verify that the 0.1-inch pitch aligns with the mating card edge design and that the solder terminal type matches the assembly process constraints.

Edgeboard Connectors Part Context

This receptacle belongs to the EDAC 842 series of high-temperature card edge connectors. The series is engineered for robust performance in medical and agricultural sectors where environmental stressors are prevalent. The specific model provides a compact solution for connecting flexible or rigid circuit boards in confined spaces while maintaining signal integrity under elevated temperatures.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalent part numbers. Generic cross-references may not match critical specifications such as high-temperature insulation materials or precise contact plating requirements. Validate mechanical fit and electrical characteristics before substituting.
