842-011-559-107

Edgeboard Connectors Overview

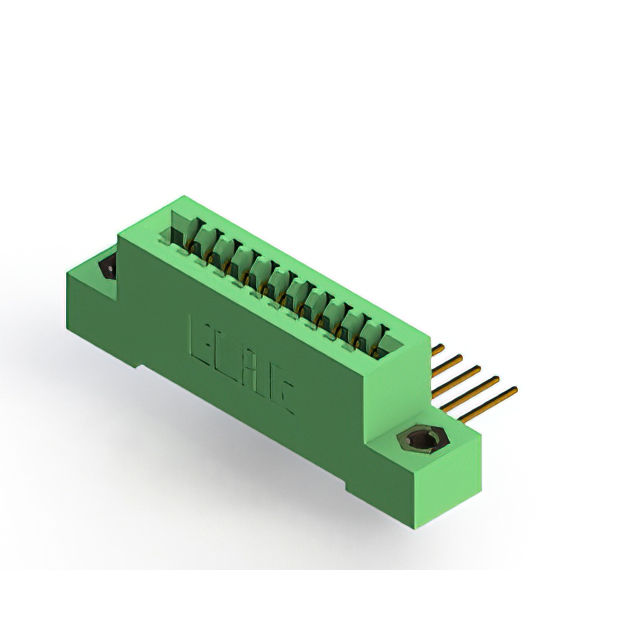

The EDAC Inc. 842-011-559-107 is a high-temperature card edge connector designed for single-edge applications. It features 11 positions with female contacts and a 0.100" (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts housed in green thermoplastic polyester insulation. Rated for operation between -40°C and 105°C, it supports board thicknesses of 0.054" to 0.070" (1.37mm to 1.78mm). This through-hole device meets RoHS3 standards.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Single-edge configuration with female contact interface
• Gold-plated contacts ensuring reliable signal transmission

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct termination style and mounting orientation. Confirm that the target PCB design accommodates the required 0.100 inch pitch and single-edge geometry. Cross-reference the high-temperature rating with system thermal requirements to validate operational suitability within the specified -40°C to 105°C range.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connection is required for boards up to 0.070 inches thick. The 0.100 inch pitch dictates compatible trace spacing on the host circuit board. Ensure the application environment remains within the stated temperature limits and that the green thermoplastic polyester housing provides adequate chemical resistance for the intended use case.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 Series, which specializes in high-temperature card edge connectors. The series offers various position counts and termination options tailored for robust industrial and specialized sector applications. The 842 designation indicates specific material properties optimized for thermal stability compared to standard series.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 842 Series Ordering Guide for direct substitutes with different pin counts or termination styles. Verify mechanical compatibility before replacing with other single-edge connectors from different manufacturers.
