842-050-500-107

Edgeboard Connectors Overview

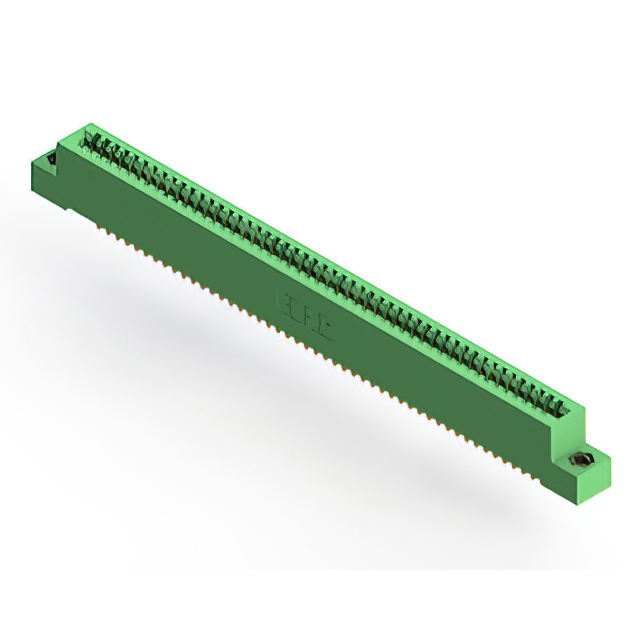

The EDAC Inc. 842-050-500-107 is a 50-position female edgeboard connector designed for single-sided card insertion. It features a 0.100-inch (2.54mm) contact spacing and utilizes gold-plated contacts with a DAP insulation material. The unit supports through-hole termination and operates within a temperature range of -40°C to 125°C. Key mechanical attributes include a green housing, flush mount flange with top opening, M3 threaded inserts, and compatibility with standard PCB thicknesses.

Edgeboard Connectors Feature Summary

• Single-sided female configuration for reliable signal transmission
• Gold-plated contacts ensure corrosion resistance and low contact impedance
• Flush mount flange design with M3 threaded inserts for secure panel attachment

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing high-reliability signal pathways
• Automotive electronics applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure that the required flange mounting style matches the intended chassis design. Confirm RoHS compliance status if restricted substances are mandated by the end-product regulations.

Edgeboard Connectors Selection Notes

Select this component when a single-sided interface is sufficient for the application requirements. The 0.100-inch pitch accommodates standard board layouts. Consider the operating temperature range of -40°C to 125°C for environmental suitability. Evaluate the need for threaded insert mounting versus other securing methods during the mechanical design phase.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of high-temperature edgeboard connectors. The series is engineered for demanding environments where thermal stability and durability are critical. The 842 series typically offers enhanced performance characteristics compared to standard industrial connectors, supporting various pin counts and configurations.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-reference models. Verify that any substitute maintains identical electrical ratings, mechanical dimensions, and mounting hole patterns to ensure seamless integration without redesigning the host assembly.
