842-062-500-202

Edgeboard Connectors Overview

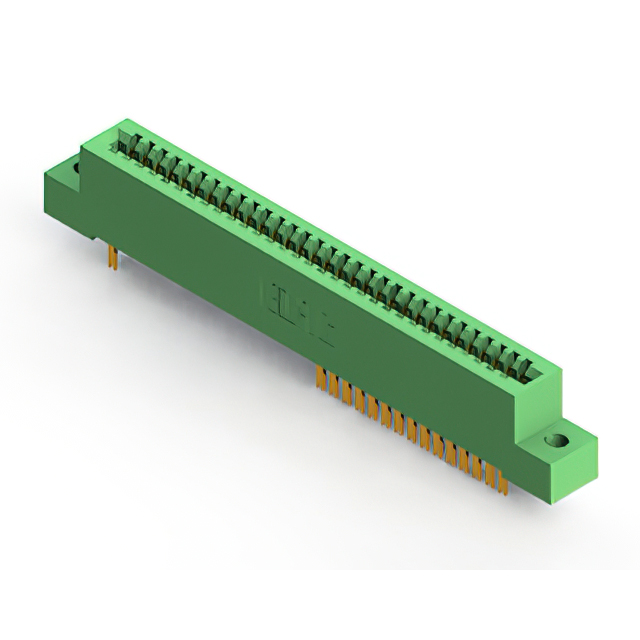

The EDAC Inc. model 842-062-500-202 is a high-temperature standard card edge connector designed for dual-edge board applications. It features a 62-position configuration with a 2.54 mm (0.100 inch) contact spacing. The receptacle utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for 3 A current, it supports panel mount installation at a right angle. The component operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge card edge receptacle design for secure board insertion
• Gold-plated contacts ensure reliable signal transmission in high-temperature environments
• Thermoplastic polyester housing provides structural stability and electrical insulation

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Automotive electronic modules requiring robust interconnects
• Aerospace and defense instrumentation
• Medical equipment internal circuitry

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and material specifications. Ensure compatibility with target PCB edge thicknesses prior to ordering. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mounting hole patterns to prevent integration errors during assembly.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for high-temperature operational environments. The 2.54 mm pitch suits standard logic and power distribution boards. Verify that the 3 A current rating meets the application's electrical load requirements. Confirm that the panel mount orientation aligns with the system chassis design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of high-temperature card edge connectors. The series is engineered for demanding environments where standard components may fail. It complements other EDAC solutions by providing specialized dual-edge configurations with enhanced thermal resilience compared to standard commercial-grade interconnects.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Generic equivalents may not match the specific high-temperature ratings or dual-edge mechanical tolerances required for this application.
