842-068-544-207

Edgeboard Connectors Overview

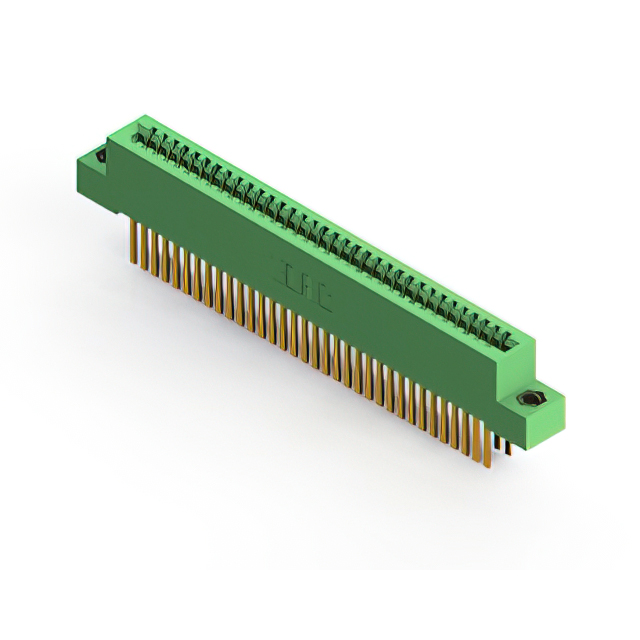

The EDAC Inc. part number 842-068-544-207 is a high-temperature card edge connector from the 842 Series. It features a dual female configuration with 68 positions and a 0.100-inch (2.54mm) pitch. Designed for panel mount installation, this vertical connector utilizes gold-plated contacts to ensure reliable signal transmission in demanding environments. The unit supports board thicknesses within standard industrial specifications and is rated for operation up to +125°C, making it suitable for applications requiring thermal resilience.

Edgeboard Connectors Feature Summary

• High-temperature design capability for thermal resilience
• Dual female contact configuration for secure mating
• Gold-plated contacts for enhanced conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Medical interconnect solutions
• Agricultural technology equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and housing material variations. Ensure compatibility with the target PCB board thickness and panel mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-temperature rating exceeding standard industrial limits is required. The 0.100-inch pitch offers a balance between density and ease of assembly. Confirm that the dual female configuration aligns with the mating card edge design and that the panel mount style fits the enclosure constraints.

Edgeboard Connectors Part Context

This connector belongs to the 842 Series, which is specifically engineered for high-temperature applications. The series provides robust interconnect solutions for sectors such as medical and agricultural technology where environmental durability and consistent performance under heat are critical operational requirements.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 842 Series variants for similar pitch and position counts. Verify that any substitute maintains the same high-temperature rating and dual female configuration to ensure functional equivalence in existing designs.
