842-072-540-207

$71.83

Description：CONN EDGE DUAL FMALE 72POS 0.100
Series：842
Mfr：EDAC Inc.
Package：Box

SKU:7f173517ebe7 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

842-072-540-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 72POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 842-072-540-207

Description：CONN EDGE DUAL FMALE 72POS 0.100
Series：842
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：36
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 842-072-540-207

842-072-540-207

Edgeboard Connectors Overview

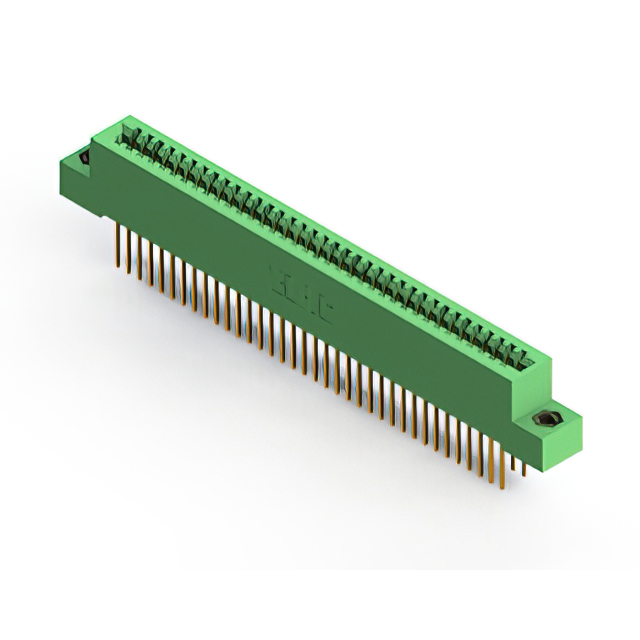

The EDAC Inc. 842-072-540-207 is a standard card edge connector receptacle featuring 72 positions arranged in a dual-row configuration. It utilizes a 0.100 inch (2.54 mm) pitch and supports a maximum operating temperature of +125°C. The contacts are gold-plated copper alloy, while the insulator is constructed from green diallyl phthalate (DAP). Designed for straddle mount installation with vertical orientation, this component accommodates board thicknesses of 1.57 mm and provides reliable high-temperature interconnection.

Edgeboard Connectors Feature Summary

High-temperature insulation material rated for operation up to +125°C
Gold-plated contacts ensure reliable signal transmission
Dual-edge female design for secure card engagement
Straddle mount style facilitates stable panel integration

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Harsh environment industrial systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact termination type, mounting flange features, and row configuration. Ensure compatibility with target PCB stack-up dimensions and thermal requirements before procurement. Cross-reference manufacturer part numbers with distributor listings to validate authenticity and current availability status.

Edgeboard Connectors Selection Notes

Select this component when high-temperature stability and robust mechanical retention are required for card edge applications. The straddle mount style offers enhanced stability compared to surface mount alternatives. Verify that the 1.57 mm board thickness tolerance aligns with the system design constraints and that the dual-row layout fits within the available footprint area.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of standard card edge connectors. The series is characterized by high-temperature capabilities and versatile mounting options. The 842 series provides multiple contact terminations and extra row configurations to support diverse electronic assembly needs across various industrial sectors.
