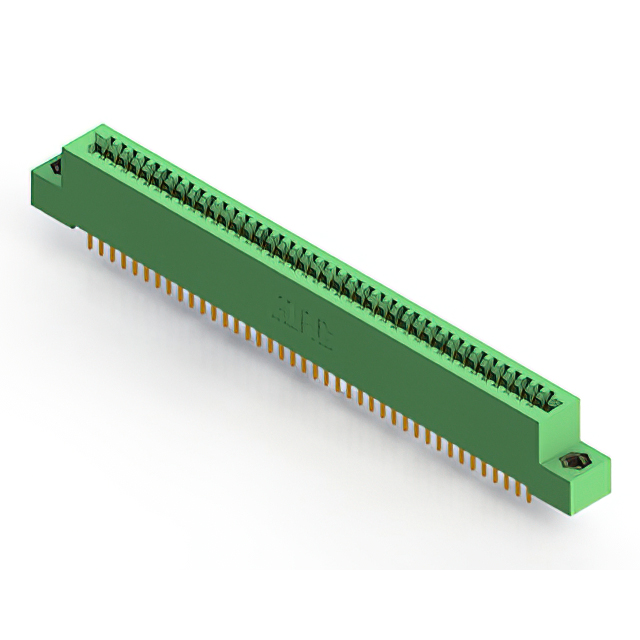

842-080-521-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 80POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 842-080-521-208
- Description：CONN EDGE DUAL FMALE 80POS 0.100
- Series：842
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：40
- Number of Positions：80
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 842-080-521-208
Edgeboard Connectors Overview
The EDAC 842-080-521-208 is a standard card edge connector receptacle featuring 80 positions arranged in two rows. It utilizes a 0.1-inch (2.54 mm) pitch and is designed for vertical panel mount installation. The unit employs female contacts with gold plating and solder terminals for secure board attachment. The insulator is constructed from green material, providing electrical isolation and mechanical support within the assembly.
Edgeboard Connectors Feature Summary
- Dual-row female contact configuration for high-density signal routing
- Solder terminal design ensures robust PCB connection integrity
- Vertical orientation facilitates efficient panel space utilization
Edgeboard Connectors Applications
- High-temperature industrial control systems
- Medical interconnect solutions requiring reliable signal transmission
- Agricultural technology equipment operating in harsh environments
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm insulation color and flange features. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the manufacturer datasheet for precise dimensional tolerances and termination specifications to guarantee proper fit.
Edgeboard Connectors Selection Notes
Select this component for applications requiring dual-row connectivity with a 0.1-inch pitch. Consider the vertical panel mount style for space-constrained enclosures. Verify that the gold-plated contacts meet the environmental durability requirements of the intended operational setting.
Edgeboard Connectors Part Context
This part belongs to EDAC's standard card edge connector portfolio, which includes various series for diverse industrial needs. The 842 series specifically addresses high-temperature and ruggedized applications, offering reliable performance in demanding sectors such as medical and agricultural technologies where stability is critical.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting configuration to preserve system compatibility.
