Edgeboard Connectors Overview

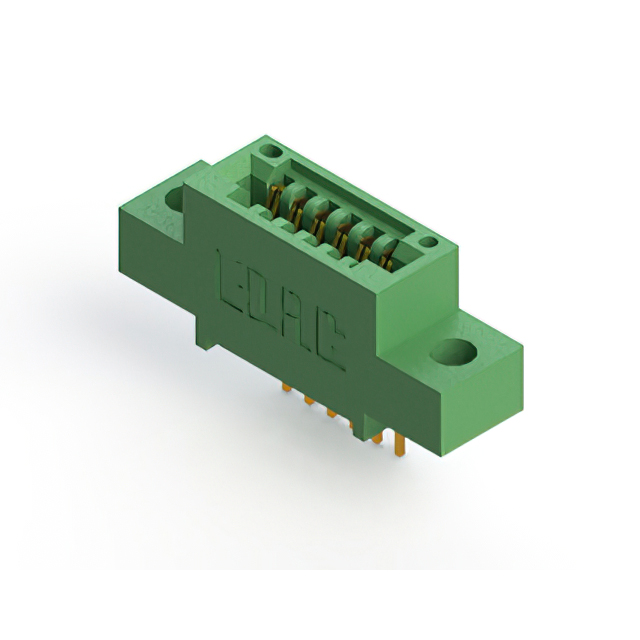

The EDAC Inc. 845-006-523-404 is a standard card edge connector from the 845 high temperature series. It features a single row with six positions and a 0.100 inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts for reliable signal transmission. Designed for panel mount applications, it supports vertical installation angles. The housing is constructed from green diallyl phthalate (DAP), providing thermal stability and mechanical strength.

Edgeboard Connectors Feature Summary

• Single female contact configuration designed for edge board insertion
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Vertical panel mount style facilitates structured circuit integration

Edgeboard Connectors Applications

• High temperature electronic assemblies requiring stable connections
• Industrial control systems utilizing card edge interface standards
• Automated equipment with vertical mounting constraints

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm material composition and plating specifications. Ensure the selected variant matches the required operating temperature range and current rating for the intended application environment. Cross-reference the datasheet for precise dimensional tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, six-position connection is required in high-temperature environments. The DAP housing offers superior thermal resistance compared to standard materials. Verify that the 0.100-inch pitch aligns with the target card edge thickness and guide slot requirements for proper mechanical fit.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series provides robust solutions for demanding industrial and aerospace applications where standard connectors may fail due to thermal stress or harsh environmental conditions.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution lists for direct replacements. Generic equivalents may not match the specific thermal ratings or contact plating requirements of the original design.
