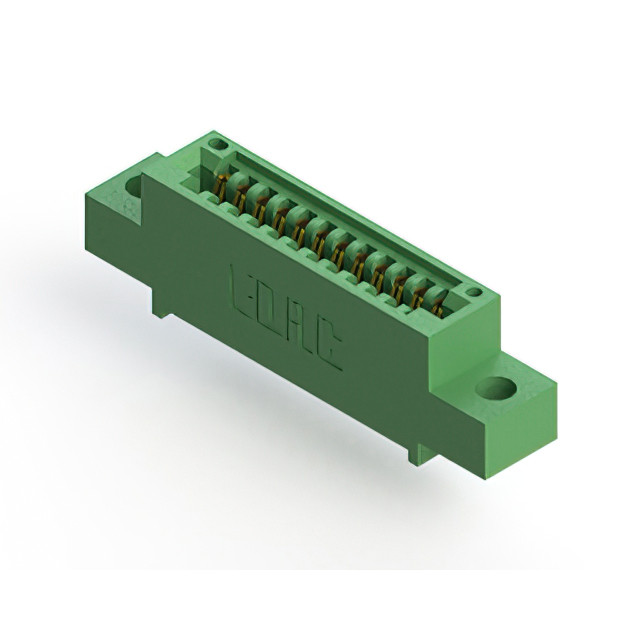

845-012-520-404 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 12POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-012-520-404
- Description：CONN EDGE SINGLE FML 12POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：12
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-012-520-404
Edgeboard Connectors Overview
The EDAC Inc. 845-012-520-404 is a standard single female card edge connector featuring a 12-position configuration with a 0.100-inch (2.54mm) pitch. Designed for panel mounting, it utilizes wire wrap termination and gold-plated copper alloy contacts to ensure reliable signal transmission. The housing is constructed from diallyl phthalate (DAP), providing structural integrity for vertical installation applications.
Edgeboard Connectors Feature Summary
- Single-sided female contact interface for board insertion
- Wire wrap termination method for secure lead attachment
- Gold-plated contacts on copper alloy substrate
- Vertical panel mount orientation
Edgeboard Connectors Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, plating thickness, and termination style match project requirements. Ensure compatibility with target PCB edge card dimensions and panel cutout specifications before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a 12-position vertical connection is required with wire wrap capabilities. Confirm that the 2.54mm pitch aligns with the mating card edge design. Evaluate the DAP housing material suitability for the intended environmental conditions and thermal range.
Edgeboard Connectors Part Context
This part belongs to the EDAC 845 series of high-temperature card edge connectors. The series offers various position counts and termination options, designed for robust performance in demanding electronic assemblies requiring reliable vertical interconnection between circuit boards and panels.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for direct cross-reference substitutes. Verify mechanical footprint and electrical ratings if considering alternative manufacturers.
