845-013-540-604

Edgeboard Connectors Overview

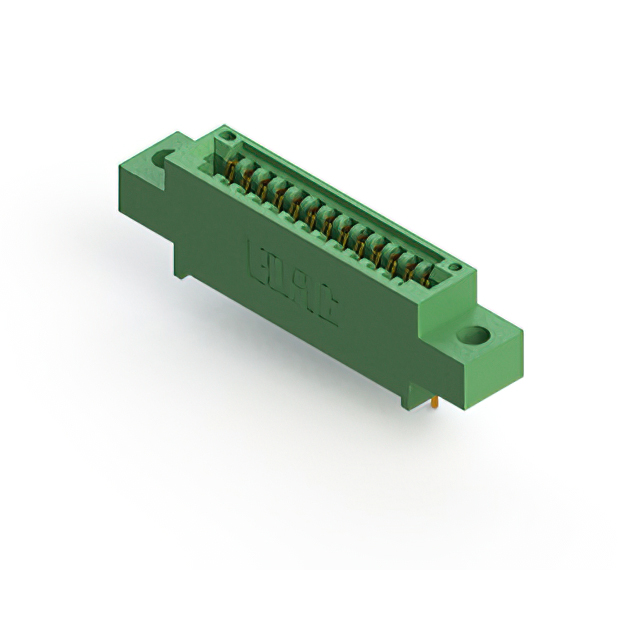

The EDAC Inc. 845-013-540-604 is a high-temperature series card edge connector designed for single-edge board applications. It features a 13-position female configuration with a 0.100 inch (2.54mm) contact spacing. The connector utilizes gold-plated contacts and a green DAP insulator body, supporting a wide operating temperature range from -40°C to +125°C. Designed for through-hole mounting, this component provides reliable signal transmission in demanding electronic environments.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction suitable for rigorous thermal conditions
• Gold-plated contacts ensure reliable electrical connectivity and corrosion resistance
• Single-row female interface optimized for standard single-edge circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment infrastructure
• Automotive electronics modules
• Aerospace and defense instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and flange configuration. Ensure compatibility with target PCB stack-up dimensions and mating card thickness specifications before procurement. Cross-reference part numbers to avoid substitution errors due to minor variant differences.

Edgeboard Connectors Selection Notes

Select this model when a single-row, 13-position connection is required with high-temperature stability. Confirm that the 0.100-inch pitch aligns with the design layout. Evaluate if the through-hole termination method suits the manufacturing process and mechanical stress requirements of the final assembly compared to surface-mount alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temp Series, which specializes in durable connectors for harsh environments. The series offers various configurations including different row counts, mounting styles, and guide options. This specific part represents a standard single-edge solution within that broader product family.

Edgeboard Connectors Replacement Considerations

Direct replacements must match the 13-position count, 2.54mm pitch, and through-hole termination. Verify equivalent high-temperature ratings and gold plating specifications. Consult manufacturer cross-reference lists for verified compatible parts with identical mechanical and electrical profiles.
