845-014-558-202

Edgeboard Connectors Overview

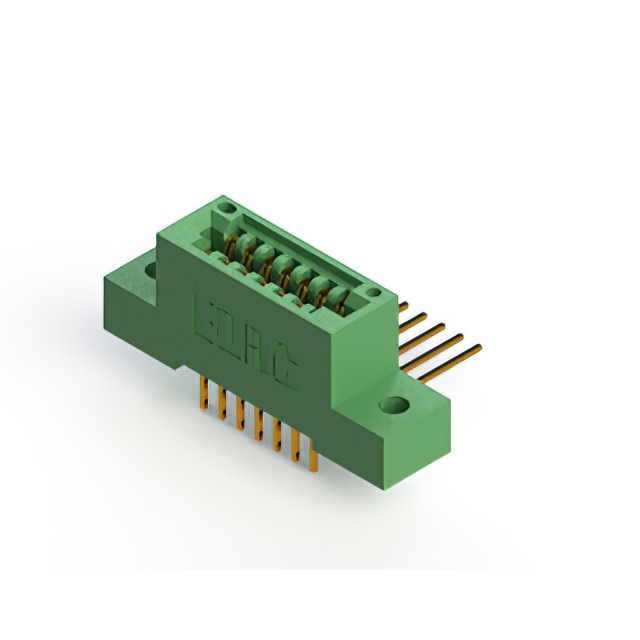

The EDAC Inc. 845-014-558-202 is a standard card edge connector from the 845 high-temperature series. It features a single row with 14 positions and a contact pitch of 2.54 mm (0.100 inch). The connector utilizes gold-plated copper alloy contacts and a diallyl phthalate (DAP) insulator body. Designed for panel mount installation in a vertical orientation, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The component supports wire wrap termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using diallyl phthalate insulators suitable for elevated thermal environments
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Vertical panel mount design accommodates standard .062 inch thick printed circuit boards

Edgeboard Connectors Applications

• High-temperature electronic assemblies requiring robust card edge interconnection
• Industrial control systems operating in demanding thermal conditions
• Military and aerospace equipment utilizing standard pitch card edge modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm pin count, plating type, and mounting style. Confirm availability status as distribution channels may list obsolete or discontinued stock. Ensure compatibility with the target board thickness and panel cutout dimensions before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 14-position interface is required for vertical panel mounting. The high-temperature rating and DAP material make it suitable for applications exceeding standard commercial temperature limits. Verify that the wire wrap termination method aligns with the system's assembly process and that the .100 inch pitch matches the mating card edge requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series offers various position counts and mounting options designed for reliability in harsh environments. The 845-014-558-202 specifically addresses needs for moderate density connections with enhanced thermal stability compared to standard commercial grade alternatives.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult the manufacturer for current equivalent recommendations or verify mechanical and electrical compatibility if considering alternative suppliers.
